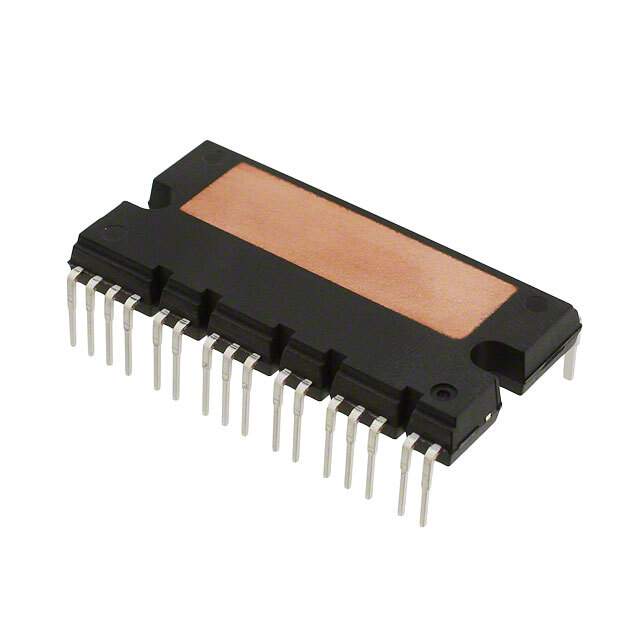

The STGIPS35K60L1 is a cutting-edge, intelligent power module designed and manufactured by STMicroelectronics. This module is part of the SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module, and is specifically tailored for applications requiring a compact footprint, high efficiency, and reliability. With a power rating of up to 35A and 600V, this module is an excellent choice for a wide range of applications including home appliances, fans, pumps, and other low-power motor drives.

Features

• Integrated Design: The STGIPS35K60L1 combines IGBTs, freewheeling diodes, and gate drivers in a single package, reducing the complexity and size of the circuit design.
• High Efficiency: Utilizing state-of-the-art IGBT technology, the module offers low conduction and switching losses, which translates into high efficiency and reduced heat generation.
• Advanced Protection: It includes features such as under-voltage lockout, smart shutdown, and temperature monitoring to ensure safe operation under various conditions.
• Easy to Use: The module is designed for ease of use with a simplified circuit layout, built-in bootstrap diodes, and an optimized gate drive.
• Compact Size: The SLLIMM™-nano package is designed to be as compact as possible, making it suitable for space-constrained applications.

Applications

• Home Appliances (Washing Machines, Refrigerators)
• Air Conditioners
• Fans and Pumps
• Light Industrial Motor Drives

The STGIPS35K60L1 is not only robust and reliable but also offers the flexibility needed for innovative and energy-efficient motor control systems. Its integrated design and advanced features make it a go-to choice for designers looking to improve system performance while reducing time-to-market. STMicroelectronics' commitment to quality ensures that each module meets the highest standards, providing a dependable solution for your power control needs.
