The STL225N6F7AG is a state-of-the-art power MOSFET designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This power MOSFET is a part of the STripFET F7 series, which is known for its low on-state resistance and high switching performance. The STL225N6F7AG is an ideal choice for a wide range of power applications, including but not limited to, switch-mode power supplies (SMPS), high-efficiency DC-DC converters, and power management functions in computing and telecom systems.

Key Features

• Low On-Resistance: With an R<sub>DS(on) of just 2.2 mΩ at V<sub>GS = 10 V, this MOSFET offers highly efficient power conversion, which can lead to energy savings in various applications.
• High Current Capability: The STL225N6F7AG can handle continuous drain currents up to 120 A, making it suitable for high-power applications.
• High Switching Performance: Fast switching speeds result in reduced switching losses, which improves overall system efficiency.
• 100% Avalanche Tested: Guarantees robust performance and reliability even under the most demanding conditions.
• Low Gate Charge: The device features a low gate charge (Q<sub>g), which reduces the power required to drive the MOSFET, enhancing the efficiency of the power management system.

Applications

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Motor control systems
• Power management for computing
• Telecom power systems

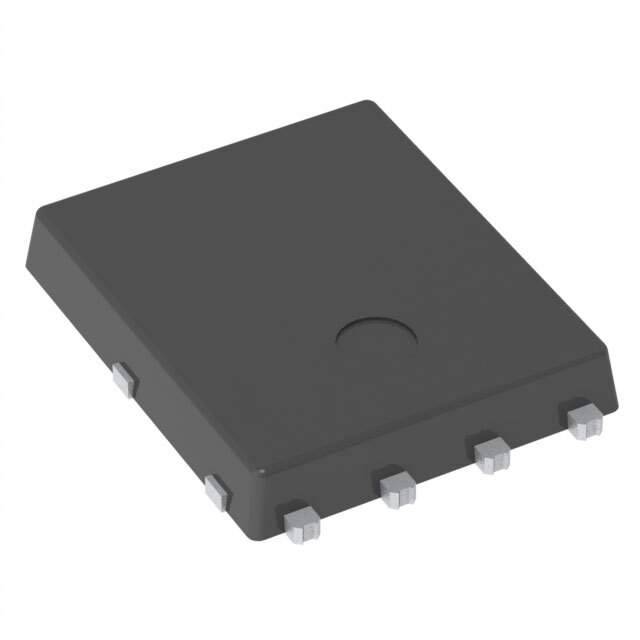

The STL225N6F7AG is encapsulated in an industry-standard PowerFLAT 5x6 package, which not only ensures a compact footprint but also offers excellent thermal performance. The combination of high efficiency, reliability, and thermal management makes the STL225N6F7AG a superior choice for designers looking to optimize their power systems for performance and cost.

STMicroelectronics' commitment to environmental sustainability is reflected in the STL225N6F7AG, as it is compliant with RoHS and Halogen-Free standards, ensuring minimal environmental impact.

With its robust design and leading-edge technology, the STL225N6F7AG from STMicroelectronics is a powerful component that meets the rigorous demands of modern electronic power systems.
