Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 114
Program Memory Size 1.5MB (1.5M x 8)
Program Memory Type FLASH
RAM Size 320K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number STM32F413
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names STM32F413ZHT6-ND,497-17255
Standard Package 360
Win Source Part Number 1097102-STM32F413ZHT6
Ultra Librarian 3D Model Ultra Librarian STM32F413ZHT6 CAD Model

Description

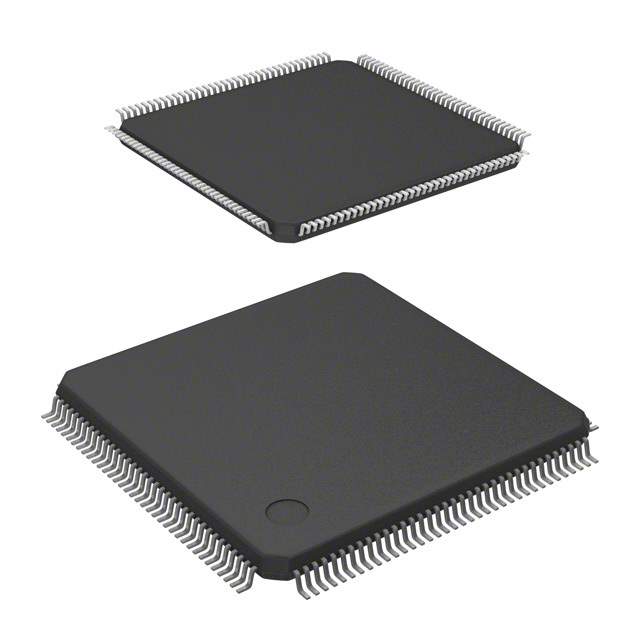

The STM32F413ZHT6 is a high-performance microcontroller from STMicroelectronics, designed to offer a perfect balance between processing power, rich features, and cost efficiency. This microcontroller is part of the STM32F4 series, which is renowned for its ARM Cortex-M4 core with a Floating Point Unit (FPU), providing the horsepower necessary for demanding embedded applications.

With its operating frequency of up to 100 MHz, the STM32F413ZHT6 is well-suited for a variety of applications, including industrial control, medical equipment, consumer electronics, and Internet of Things (IoT) devices. Its 1.5 Mbytes of on-chip Flash memory and 320 Kbytes of SRAM ensure ample storage for complex applications and algorithms.

The microcontroller features a range of peripherals that enhance its connectivity and data handling capabilities. These include USB OTG Full-Speed and High-Speed with on-chip PHY, a Full duplex I2S interface, an SAI audio interface, and several SPI/I2C serial interfaces. Furthermore, the STM32F413ZHT6 supports up to 125 DMIPS of processing throughput, thanks to its Cortex-M4 core's advanced architecture and the inclusion of a single-cycle multiplication and hardware division.

Security features are also a key aspect of this microcontroller, with a Memory Protection Unit (MPU), a Cryptographic acceleration cell, and a True Random Number Generator (TRNG) that provide the essentials for secure communication and data protection. The device also includes a TFT LCD controller, making it an excellent choice for applications with a graphical user interface.

The STM32F413ZHT6 operates over a wide range of supply voltages from 1.7V to 3.6V, and it is available in a 144-pin LQFP package, which allows for a compact PCB design. Its extensive set of power-saving modes enables the design of energy-efficient applications, which is crucial for battery-operated devices.

Overall, the STM32F413ZHT6 is a robust and versatile microcontroller that provides developers with a scalable, flexible, and cost-effective solution for a wide array of embedded systems.
