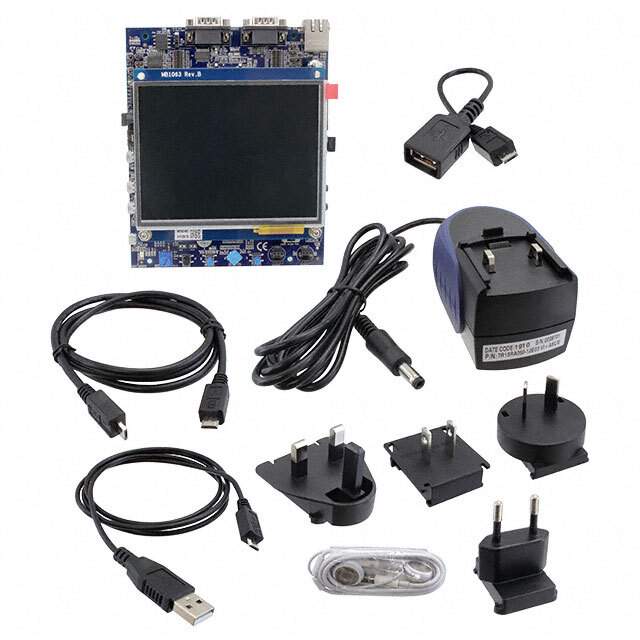

STM32H743I-EVAL2 Evaluation Board Overview

The STM32H743I-EVAL2 evaluation board is a high-end development platform designed by STMicroelectronics, aimed at providing users with a comprehensive tool to explore the capabilities of the STM32H7 series microcontrollers. This board is particularly suited for developers working on complex applications requiring high computing power, rich graphical interfaces, and extensive connectivity features.

Key Features

• Powerful Core: At the heart of the STM32H743I-EVAL2 is the STM32H743II MCU, which features an ARM Cortex-M7 core running at up to 400 MHz. This core provides the computational horsepower necessary for demanding applications.
• Memory: The board comes equipped with a range of memory options, including 2 Mbytes of Flash memory, 1 Mbyte of RAM, and external memory interfaces for SDRAM, SRAM, NOR Flash, NAND Flash, and FRAM, facilitating complex program and data storage requirements.
• Rich Connectivity: A comprehensive set of communication interfaces is available, such as Ethernet, four USB ports, CAN, LIN, USART, SPI, I2C, and more, enabling the board to handle various communication protocols with ease.
• Advanced Graphics: For applications with graphical user interfaces, the board features an LCD-TFT controller and provides an LCD display with a touch panel, enabling the creation of intuitive and visually-rich user interfaces.
• Audio Capabilities: The evaluation board includes audio DAC and ADC components, as well as stereo headphone and microphone jacks, supporting the development of audio applications.
• Flexible Power Supply: The STM32H743I-EVAL2 can be powered through various sources, including external power supplies, Power over Ethernet (PoE), and USB, providing flexibility in different development environments.
• Expansion Support: With Arduino Uno V3 and STMod+ connectors, the board offers support for additional expansion, making it a versatile choice for prototyping with a wide range of add-on modules.

Development Support

The board is supported by a range of software tools, including the STM32CubeH7 MCU Package, which contains HAL, low-layer APIs, and middleware components. It also supports ARM mbed and is compatible with a wide range of integrated development environments (IDEs), such as IAR, Keil, and GCC-based IDEs.

With its robust set of features, the STM32H743I-EVAL2 evaluation board is an ideal platform for evaluating the performance and features of the STM32H7 series microcontrollers, and it is perfect for developing high-performance applications in areas such as industrial control, consumer electronics, medical devices, and IoT.
