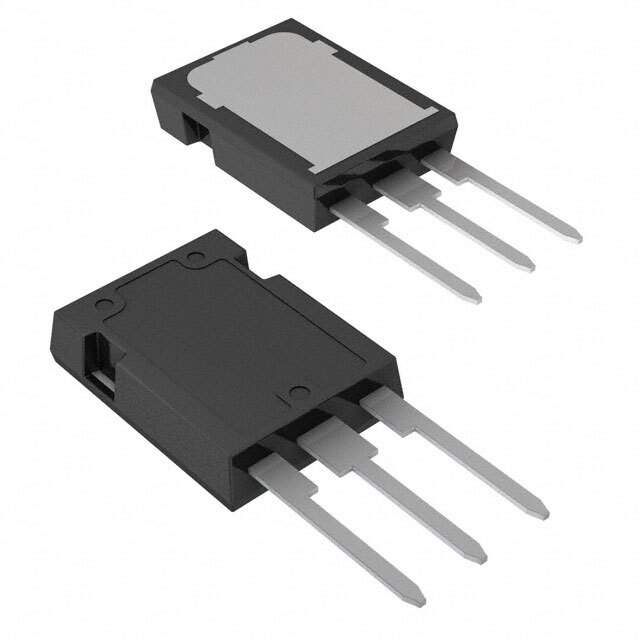

The STY112N65M5 is a state-of-the-art N-channel Power MOSFET from STMicroelectronics, designed to deliver high efficiency and performance for a wide range of applications. This power MOSFET is part of the MDmesh™ M5 series, which is renowned for its excellent switching performance and low on-resistance, making it an ideal choice for high-power and high-frequency applications.

Key Features

• High Drain-Source Breakdown Voltage (V<sub>DS): With a breakdown voltage of 650V, the STY112N65M5 is suitable for high voltage applications, providing reliability and robustness in operation.
• Low On-Resistance (R<sub>DS(on)): The device boasts an extremely low on-resistance of up to 0.036 Ohm, which translates to reduced conduction losses and improved overall efficiency.
• High Current Capability: This MOSFET can handle continuous drain currents (I<sub>D) up to 84 A, making it capable of powering demanding loads.
• Fast Switching Speed: The STY112N65M5 features fast switching characteristics, which are essential for reducing switching losses, especially in high-frequency power converters and inverters.
• Reduced Gate Charge (Q<sub>g): A low gate charge ensures that less energy is required to turn the MOSFET on and off, which enhances the power efficiency of the entire system.
• 100% Avalanche Tested: This product is guaranteed to withstand rugged operating conditions and is tested for avalanche ruggedness, ensuring reliability in applications prone to hard switching.

Applications

The STY112N65M5 is well-suited for a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• High-performance Drives
• Power Factor Correction (PFC) circuits
• LED Lighting
• Welding Equipment

With its robust design and superior electrical characteristics, the STY112N65M5 from STMicroelectronics is a reliable and efficient solution for designers looking to improve power density and efficiency in their power conversion systems.
