The X0402MF 1AA2 is a high-performance, sensitive gate silicon-controlled rectifier (SCR) manufactured by STMicroelectronics, a leader in the semiconductor industry. This SCR is designed to provide efficient and reliable operation in a wide range of applications, from motor control to switching applications where high surge capability is required.

Key Features

• On-State RMS Current: The X0402MF 1AA2 can handle an RMS current of up to 0.8 A, making it suitable for controlling moderate power levels in various circuits.
• Repetitive Peak Off-State Voltage: With a repetitive peak off-state voltage (Vdrm/Vrrm) of 600 V, this SCR ensures safe operation even under high voltage conditions.
• Gate Trigger Current: The device features a low gate trigger current (Igt) of typically 5 mA, which allows for easy triggering with simple drive circuitry.
• Surge Current: It boasts an impressive non-repetitive surge peak on-state current (Itsm) of 8.5 A, providing robust performance during surge conditions.

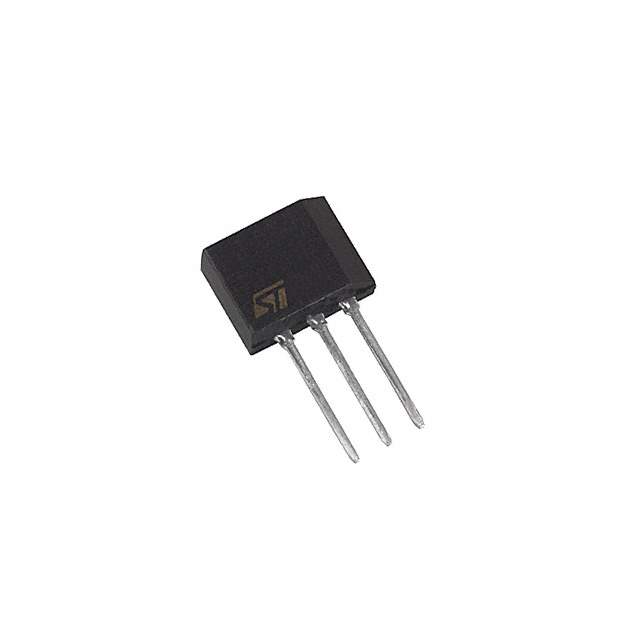

• Package: The X0402MF 1AA2 is available in a TO-202 package, which is well-suited for through-hole mounting, providing a reliable mechanical and electrical connection.

Applications

The versatility of the X0402MF 1AA2 SCR makes it ideal for a variety of applications. It is commonly used in:

• Ignition circuits for gas lighters or gas stoves
• Overvoltage crowbar protection circuits
• Motor control circuits for power tools and kitchen appliances
• Capacitive discharge ignition systems
• Control systems in home automation

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The X0402MF 1AA2 is built to meet rigorous standards, ensuring reliability and performance in even the most demanding situations. With its robust design and excellent surge handling capability, this SCR is a top choice for designers looking for a dependable solution for their high-voltage switching needs.
