Same model may have multiple batches, images only for reference.

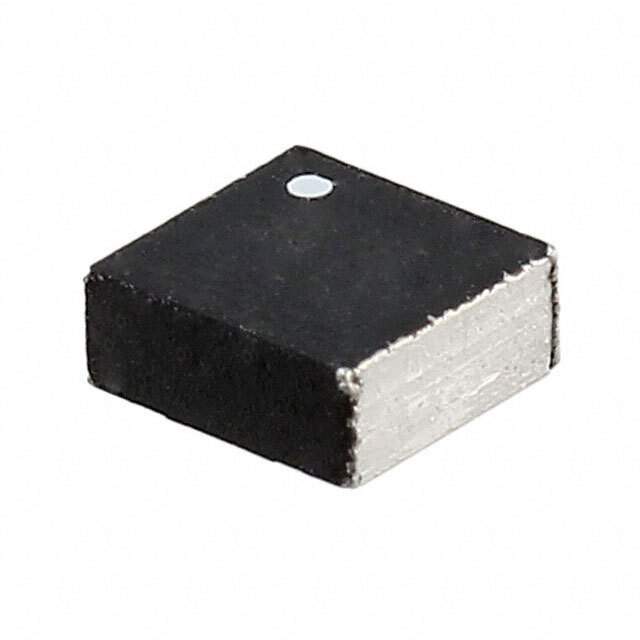

0420CDMCDS-4R7MC Real Image
Same model may have multiple batches, images only for reference.

0420CDMCDS-4R7MC

Part No 0420CDMCDS-4R7MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 4.7uH 20% 100KHz 3.1A 0.067Ohm DCR T/R / FIXED IND 4.7UH 3.1A 67 MOHM SMD
Datasheet
0420CDMCDS-4R7MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.1A
Current - Saturation 3.4A
DC Resistance (DCR) 67 mOhm
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1000129-0420CDMCDS-4R7MC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 0420CDMC/DS
Introduction Date December 11, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 0420CDMCDS-4R7MC CAD Model

Description

The 0420CDMCDS-4R7MC is a wirewound type of inductor that is suitable for use in various electronic devices.

  • Type: Wirewound
  • Part Number: 1000129-0420CDMCDS-4R7MC
  • Inductance: 4.7µH
  • Current Rating: 3.1A
  • DC Resistance: 67mOhm
  • Current Saturation: 3.4A
  • Package: Surface Mount
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 105°C
  • Status: Obsolete (EOL)
  • Popularity: High
  • Supply and Demand: Balanced
  • Win Source Part Number: 1000129-0420CDMCDS-4R7MC
