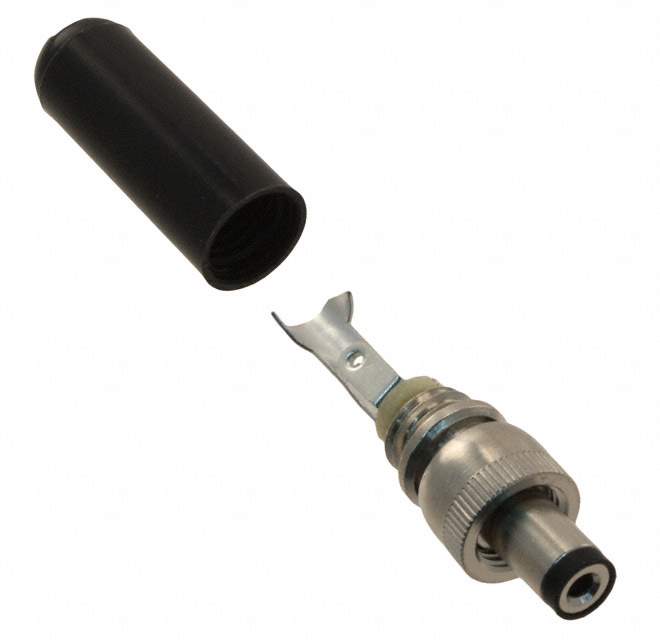

S760K Real Image
Same model may have multiple batches, images only for reference.

S760K

Part No S760K
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Plug
Gender Female
Actual Diameter 0.083" (2.10mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Features Cable Clamp, Thread Lock
Insulation Color Black
Current Rating (Amps) 5 A
Contact Material - Plating Tin
Body Material Brass
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Brass
Body Color Silver, Black
Base Product Number S760
Other Names Q817271
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1294272-S760K
Ultra Librarian 3D Model Ultra Librarian S760K CAD Model

Description

The S760K is a two-conductor, two-contact power connector from Switchcraft Inc.

  • Conductors: 2
  • Contacts: 2
  • Packaging: Bulk
  • Standard Package: 100
  • Gender: Female
  • Connector Type: Plug
  • Features: Cable clamp and thread lock
  • Mounting Type: Free-hanging (in-line)
  • Contact Material: Brass
  • Insulation Material: Black thermoplastic material
  • Contact Material Plating: Tin
  • Actual Diameter: 0.083 inches (2.10mm ID) and 0.217 inches (5.50mm OD)
  • Current Rating: 5 A
