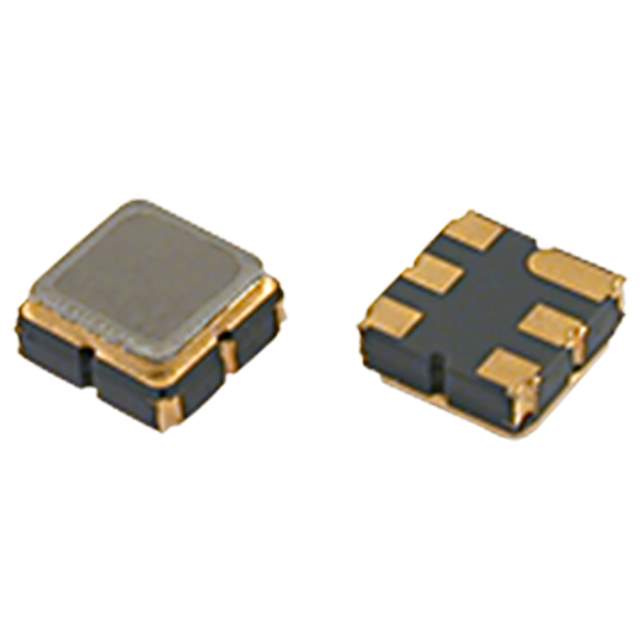

The TA1654A is a SAW (Surface Acoustic Wave) filter manufactured by TAI-SAW TECHNOLOGY CO., LTD. As a SAW filter, its primary function is to selectively pass or reject radio frequency (RF) signals based on their frequency. This makes it crucial for applications where isolating specific frequency bands is essential.

Applications

• Wireless communication systems (e.g., cellular, Wi-Fi)
• Radio receivers and transmitters
• GPS devices
• RF signal processing equipment
• Remote control systems

Features

• SAW (Surface Acoustic Wave) technology for precise frequency selection
• Low insertion loss in the passband
• High attenuation in the stopband (rejection of unwanted signals)
• Compact surface-mount package
• Stable performance over temperature variations

Benefits

• Improved signal clarity by filtering out noise and interference
• Enhanced sensitivity of receivers by isolating the desired signal
• Reduced interference between different communication systems
• Smaller and lighter devices due to compact filter size
• Reliable operation in a variety of environmental conditions

Additional Details

The TA1654A leverages the properties of surface acoustic waves to achieve its filtering characteristics. The specific design of the SAW structure determines the filter's center frequency, bandwidth, and rejection characteristics. Lower insertion loss means less signal energy is lost during filtering, improving overall system efficiency. High attenuation in the stopband ensures that unwanted signals are effectively blocked, preventing interference with the desired signal. The surface-mount package enables easy integration into modern electronic devices. Detailed electrical characteristics, including center frequency, bandwidth, insertion loss, ripple, and attenuation, can be found in the TAI-SAW TECHNOLOGY datasheet. This filter is commonly used in front-end receiver circuits to improve signal-to-noise ratio and enhance overall system performance.
