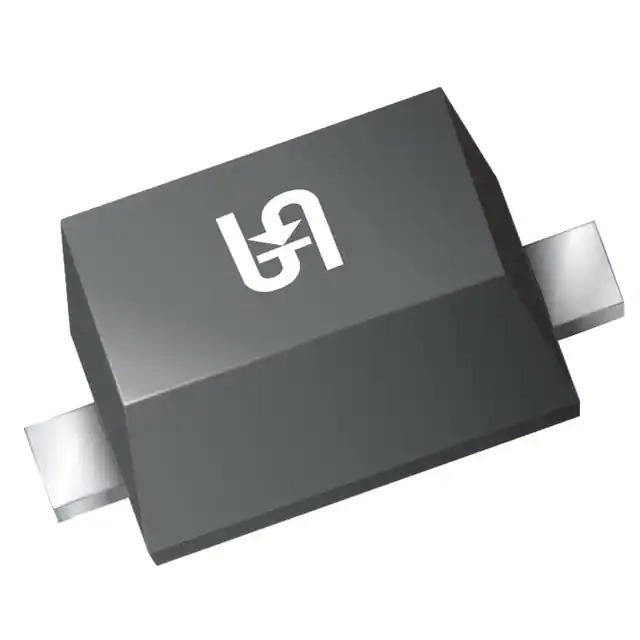

BZT52B36S

Name: BZT52B36S
Brand: Taiwan Semiconductor
SKU: 1367629
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BZT52B36S
Manufacturer	Taiwan Semiconductor
Catalog	Diodes - Zener - Single
Description	SOD-323F, 200MW, 2%, SMALL SIGNA
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tape & Reel
Product Status	Active
Voltage - Zener (Nom) (Vz)	36 V
Tolerance	±2%
Power - Max	200 mW
Impedance (Max) (Zzt)	90 Ohms
Current - Reverse Leakage @ Vr	45 nA @ 25.2 V
Voltage - Forward (Vf) (Max) @ If	1 V @ 10 mA
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323F
Base Product Number	BZT52B
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Win Source Part Number	1367629-BZT52B36S
Ultra Librarian 3D Model	Ultra Librarian BZT52B36S CAD Model

Alternative Products

Description

The BZT52B36S is a zener diode from Taiwan Semiconductor Corporation. It is a surface mount diode with a package type of SC-90, SOD-323F.

Diode Type: Single Zener Diode
Mounting Type: Surface Mount
Package: SC-90, SOD-323F
Forward Voltage: 1V @ 10mA
Reverse Leakage Current: 45nA @ 25.2V
Power Dissipation: 200mW
Zener Voltage: 36V
Impedance: 90 Ohms
Product Status: Active
Manufacturer: Taiwan Semiconductor Corporation
