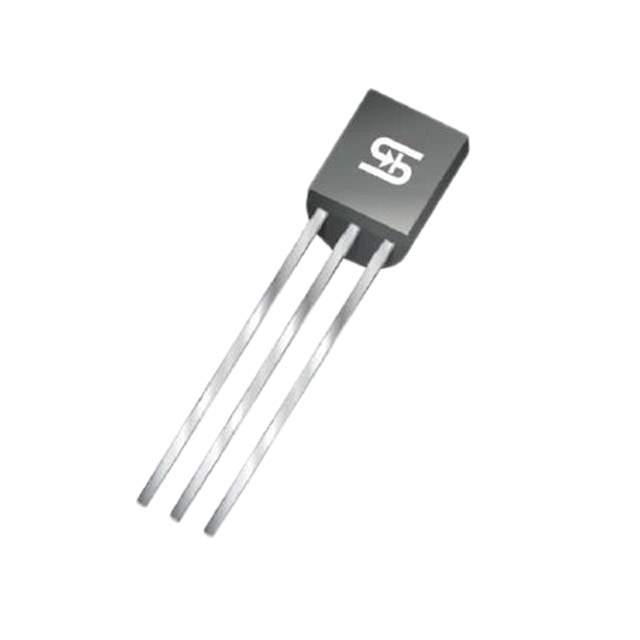

KTC3198-BL B1G Real Image
Same model may have multiple batches, images only for reference.

KTC3198-BL B1G

Part No KTC3198-BL B1G
Manufacturer Taiwan Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR, NPN, 50V, 0.15A, 70A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TSC America Inc.
Transistor Type NPN
Current - Collector (Ic) (Maximum) 150mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) @ Ib, Ic 250mV @ 10mA, 100mA
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 70 @ 2mA, 6V
Power - Max 500mW
Frequency - Transition 80MHz
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 (TO-226AA)
Manufacturer Package TO-92
Win Source Part Number 778095-KTC3198-BL B1G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KTC3198-BL B1G CAD Model

Description

The TSC America Inc. KTC3198-BL B1G is a through-hole NPN transistor with a maximum power of 500mW.

  • Frequency Transition: 80MHz
  • Collector Current (Ic) Maximum: 150mA
  • Voltage Collector Emitter Breakdown (Maximum): 50V
  • Vce Saturation (Maximum) @ Ib, Ic: 250mV @ 10mA, 100mA
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 70 @ 2mA, 6V
  • Package: TO-226-3, TO-92-3 (TO-226AA)
  • Current Collector Cutoff (Maximum): 100nA (ICBO)
