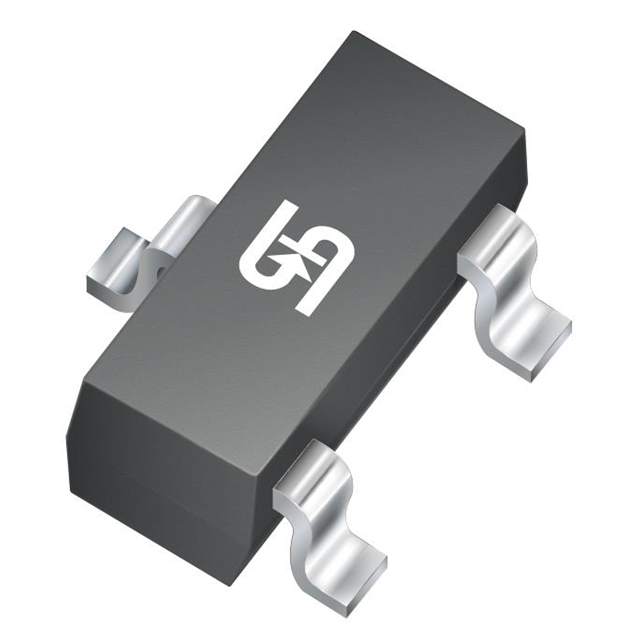

The TS1431BCX is a precision adjustable shunt regulator manufactured by Taiwan Semiconductor. This device is designed to provide a stable and accurate voltage reference, making it suitable for a wide range of applications requiring precise voltage regulation. It functions similarly to a Zener diode but offers greater precision and adjustability.

Applications

• Power supplies
• Voltage references
• Linear regulators
• Switching power supplies
• Instrumentation circuits

Features

• Adjustable output voltage: Can be set to any voltage between Vref (typically 2.5V) and 36V using external resistors.
• Low temperature coefficient: Provides stable voltage output over a wide temperature range.
• Low dynamic output impedance: Ensures stable output voltage under varying load conditions.
• High precision: Offers accurate voltage regulation.
• Low operating current: Efficient operation with minimal power consumption.

Benefits

• Precise voltage regulation: Ensures stable and accurate voltage output for sensitive circuits.
• Flexible voltage setting: Adjustable output voltage allows for customization to specific application requirements.
• Stable performance: Low temperature coefficient and dynamic output impedance ensure consistent performance across different operating conditions.
• Improved system reliability: Accurate voltage regulation protects downstream circuits from voltage fluctuations.
• Energy efficient: Low operating current minimizes power consumption and heat generation.

Additional Details

The TS1431BCX operates by comparing the output voltage to an internal reference voltage and adjusting the shunt current to maintain the desired output voltage. The output voltage is set using two external resistors connected as a voltage divider. The device also includes built-in overcurrent and overtemperature protection.

When using the TS1431BCX, it is crucial to select appropriate resistor values to set the desired output voltage. The manufacturer's datasheet provides detailed information on resistor selection and layout considerations. Careful attention should be paid to thermal management to prevent overheating, especially in high-current applications. Proper PCB layout techniques are essential for minimizing noise and ensuring stable operation.
