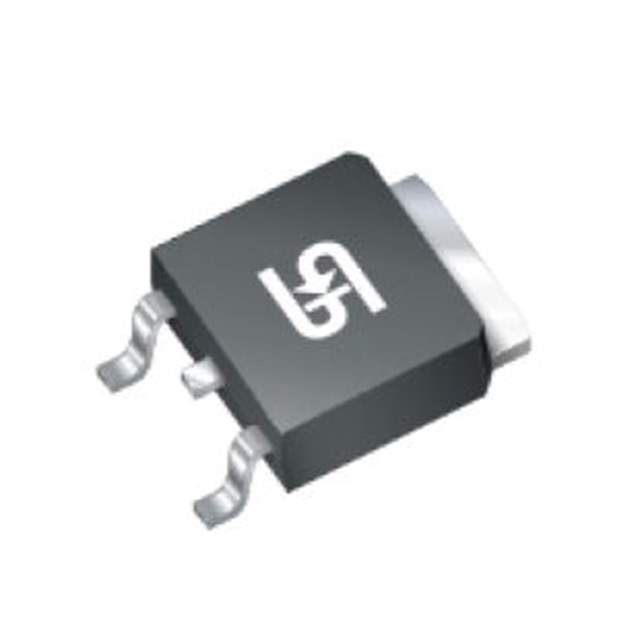

TSC5304EDCP Real Image
Same model may have multiple batches, images only for reference.

TSC5304EDCP

Part No TSC5304EDCP
Manufacturer Taiwan Semiconductor
Catalog OEM Parts (T - Z)
Description TO-252 (D-PAK) 700V 4A NPN Bipolar Transistor
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Breakdown Voltage 51 V
Clamping Voltage 70.1 V
Collector Base Voltage (VCBO) 700 V
Collector Emitter Saturation Voltage 3 V
Collector Emitter Voltage (VCEO) 400 V
Continuous Collector Current 4 A
Drain to Source Voltage (Vdss) -60 V
Emitter Base Voltage (VEBO) 9 V
Forward Voltage 1 V
Gate to Source Voltage (Vgs) -1.5 V
hFE Min 8
Input Capacitance 436 pF
Max Breakdown Voltage 9.8 V
Max Forward Surge Current (Ifsm) 2.5 A
Max Junction Temperature (Tj) 150 °C
Max Repetitive Reverse Voltage (Vrrm) 250 V
Max Reverse Leakage Current 1 µA
Min Breakdown Voltage 25.4 V
Number of Channels 2
Peak Pulse Current 21.4 A
Peak Pulse Power 1.5 kW
Polarity NPN
Power Dissipation 200 mW
Reverse Recovery Time 50 ns
Reverse Standoff Voltage 24 V
Test Current 2.5 mA
Zener Voltage 75 V
Win Source Part Number 1101390-TSC5304EDCP
Categories OEM Parts(T-Z)
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian TSC5304EDCP CAD Model

Description

The Taiwan Semiconductor TSC5304EDCP is an NPN transistor with a drain to source voltage (Vdss) of -60 V and a collector emitter voltage (VCEO) of 400 V.

  • Maximum Junction Temperature (Tj): 150 °C
  • Continuous Collector Current: 4 A
  • Peak Pulse Power: 1.5 kW
  • Peak Pulse Current: 21.4 A
  • Maximum Reverse Leakage Current: 1 µA
  • Breakdown Voltage: 51 V
  • Reverse Recovery Time: 50 ns
  • Maximum Forward Surge Current (Ifsm): 2.5 A
  • Usage: OEM parts
