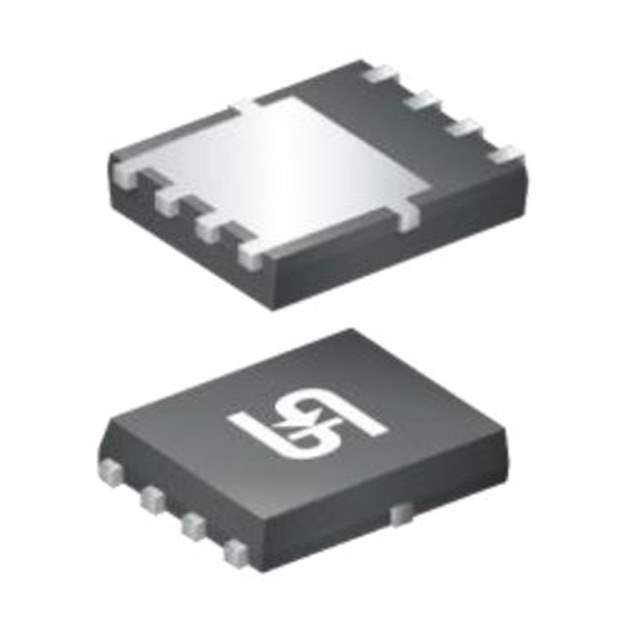

TSM070NA04LCR RLG Real Image
Same model may have multiple batches, images only for reference.

TSM070NA04LCR RLG

Part No TSM070NA04LCR RLG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 91A 8PDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features N-Channel 40 V 91A (Tc) 113W (Tc) Surface Mount 8-PDFN (5x6)
Manufacturer Taiwan Semiconductor
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package 8-PDFN (5x6)
Family Name TSM070
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number TSM070NA04LCR RLGDKR, TSM070NA04LCR RLGCT, TSM070NA04LCR RLGCT-ND, TSM070NA04LCR RLGTR, TSM070NA04LCR RLGTR-ND, TSM070NA04LCRRLGDKR, TSM070NA04LCRRLGTR, TSM070NA04LCRRLGCT, TSM070NA04LCR RLGDKR-ND
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901316-TSM070NA04LCR RLG
Ultra Librarian 3D Model Ultra Librarian TSM070NA04LCR RLG CAD Model

Description

The Taiwan Semiconductor TSM070NA04LCR RLG is an N-channel MOSFET with a voltage rating of 40V and a current rating of 91A.

  • Type: N-channel MOSFET
  • Voltage Rating: 40V
  • Current Rating: 91A
  • Package: Surface mount 8-PowerTDFN package
  • Popularity: High
  • Supply and Demand Status: Balanced
