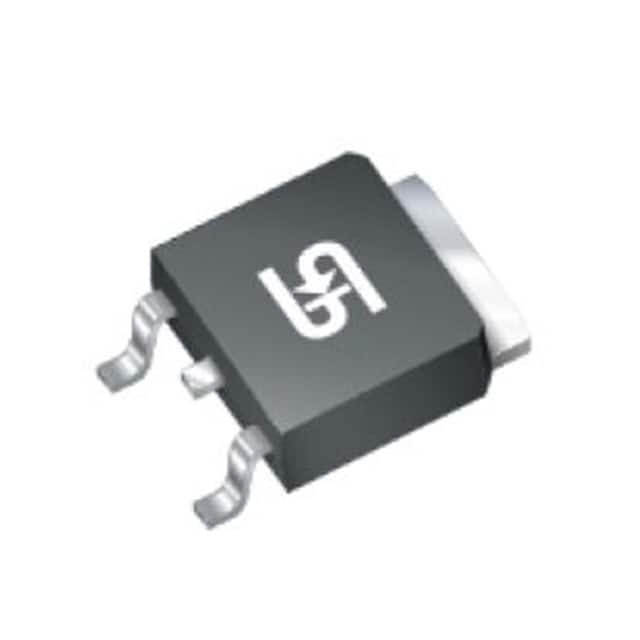

TSM70N900CP Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

TSM70N900CP

Part No TSM70N900CP
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description 700V, 4.5A, SINGLE N-CHANNEL POW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 700 V
Current - Continuous Drain (Id) @ 25°C 4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 900mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 9.7 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 482 pF @ 100 V
FET Feature -
Power Dissipation (Max) 50W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package TO-252, (D-Pak)
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Base Product Number TSM70
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1380175-TSM70N900CP
Ultra Librarian 3D Model Ultra Librarian TSM70N900CP CAD Model

Description

The TSM70N900CP is a N-Channel MOSFET transistor from Taiwan Semiconductor Corporation.

  • Series: TSM70
  • Drain to Source Voltage (Vdss): 700 V
  • Continuous Drain Current (Id): 4.5A @ 25°C
  • On-Resistance (Rds On): 900mOhm @ 1.5A and 10V
  • Gate Threshold Voltage (Vgs(th)): 4V @ 250μA
  • Gate Charge (Qg): 9.7 nC @ 10V
  • Power Dissipation: 50W
  • Package: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Mounting: Surface Mount
