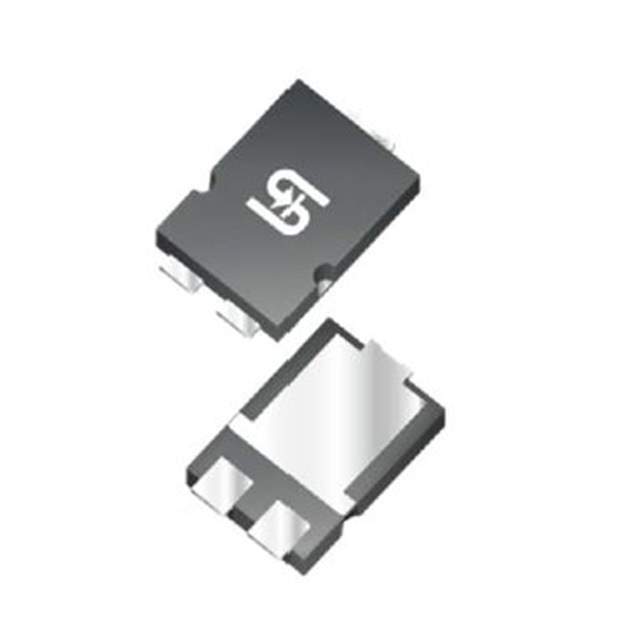

The TSP15H150S S1G is a Superfast Rectifier manufactured by Taiwan Semiconductor. It is designed for high-efficiency rectification in various power electronics applications. This device offers fast switching speeds and low forward voltage drop, making it suitable for applications requiring efficient power conversion.

Applications

• Switch Mode Power Supplies (SMPS): Used as a rectifier in SMPS circuits for efficient power conversion.
• Power Factor Correction (PFC): Employed in PFC circuits to improve power factor and reduce harmonic distortion.
• Freewheeling Diodes: Used as freewheeling diodes in inductive load applications.
• Inverters: Integrated into inverters for converting DC power to AC power.
• Motor Drives: Used in motor drive circuits to provide efficient rectification.

Features

• Superfast Recovery Time: Features a superfast reverse recovery time for high-speed switching.
• Low Forward Voltage Drop: Offers a low forward voltage drop, reducing power losses.
• High Surge Current Capability: Designed to withstand high surge currents.
• High Reliability: Manufactured with high-quality materials for reliable operation.
• RoHS Compliant: Compliant with RoHS (Restriction of Hazardous Substances) standards.

Benefits

• Efficient Rectification: Provides efficient rectification with low power losses.
• High-Speed Switching: Enables high-speed switching for improved performance.
• Surge Protection: Offers surge current protection for reliable operation.
• Environmentally Friendly: RoHS compliance ensures environmental friendliness.
• Long Lifespan: Designed for long-term reliable operation.

Additional Details

The TSP15H150S S1G is designed with a compact package for easy integration into various circuit designs. Its superfast recovery time minimizes switching losses, making it suitable for high-frequency applications. The rectifier is designed to operate over a wide temperature range and provides excellent performance under various operating conditions. Its robust construction ensures reliable operation in demanding applications.
