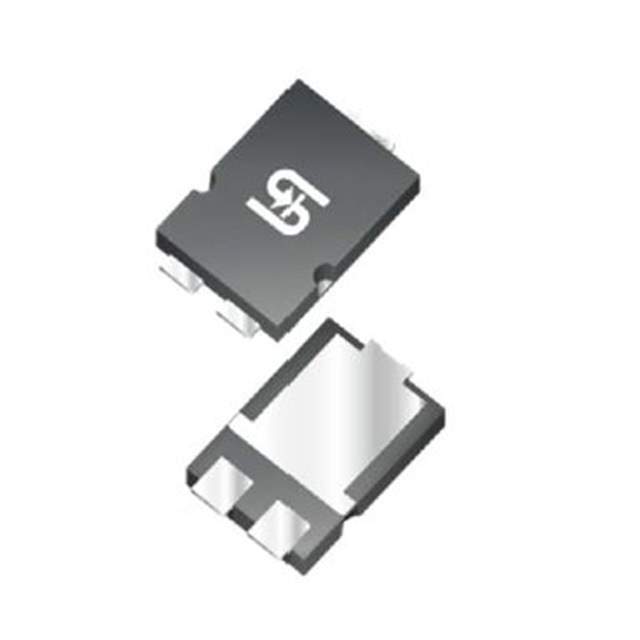

Same model may have multiple batches, images only for reference.

TSP3H150S S1G

Name: TSP3H150S S1G
Brand: Taiwan Semiconductor
SKU: 979363
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSP3H150S S1G
Manufacturer	Taiwan Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 150V 3A TO277A / Diode Schottky 150 V 3A Surface Mount TO-277A (SMPC)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Taiwan Semiconductor Corporation
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	860 mV @ 3 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	20 ns
Current - Reverse Leakage @ Vr	100 µA @ 150 V
Capacitance @ Vr, F	150pF @ 4V, 1MHz
Mounting	SMD (SMT)
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277A (SMPC)
Operating Temperature - Junction	-55°C ~ 150°C
Base Product Number	TSP3H150
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	TSP3H150SS1GTR,TSP3H150SS1GDKR,TSP3H150S S1GDKR-ND,TSP3H150S S1GCT-ND,TSP3H150S S1GTR-ND,TSP3H150SS1GCT,TSP3H150S S1GDKR,TSP3H150S S1GCT,TSP3H150S S1GTR
Standard Package	1,500
Win Source Part Number	979363-TSP3H150S S1G
Ultra Librarian 3D Model	Ultra Librarian TSP3H150S S1G CAD Model

Alternative Products

Description

The Taiwan Semiconductor Corporation TSP3H150S S1G is a fast recovery Schottky diode that is widely used in various electronic applications.

Maximum DC Reverse Voltage: 150 V
Average Rectified Current (Io): 3A
Forward Voltage (Vf) @ max current (If): 860 mV
Reverse Recovery Time (trr): 20 ns
Current Reverse Leakage @ Vr: 100 μA @ 150 V
Capacitance @ Vr, F: 150pF @ 4V, 1MHz
Mounting: SMD (SMT)
Package: TO-277, 3-PowerDFN
