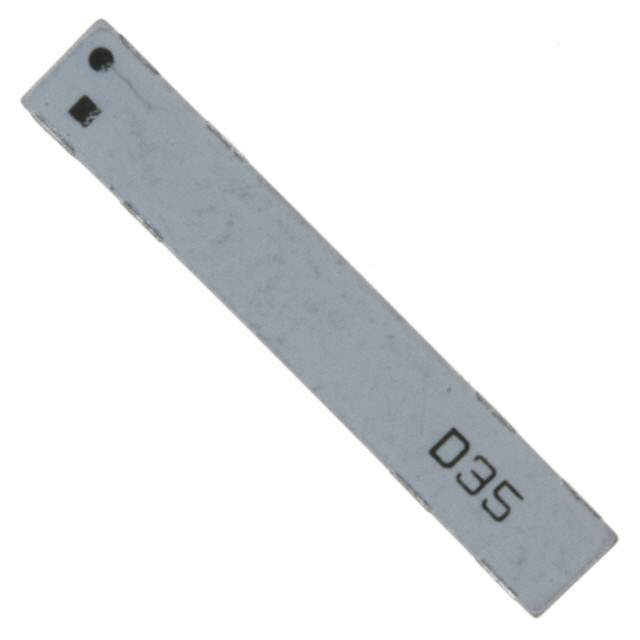

AH122F245001-T Real Image
Same model may have multiple batches, images only for reference.

AH122F245001-T

Part No AH122F245001-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description ANT BLUETOOTH W-LAN ZIGBEE WIMAX
Datasheet
AH122F245001-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.037" (0.95mm)
Applications Bluetooth, GPS, UWB, WiMax, WLAN, Zigbee
Win Source Part Number 1016312-AH122F245001-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AH122F245001-T CAD Model

Description

The Taiyo Yuden AH122F245001-T chip antenna is designed for use in Bluetooth, GPS, UWB, WiMax, WLAN, and Zigbee applications.

  • Applications: Bluetooth, GPS, UWB, WiMax, WLAN, Zigbee
  • Frequency Range: 2.4GHz to 2.5GHz
  • Mounting: Surface Mount Technology
  • Termination: Solder
  • Height: 0.037 inches
  • Band: Single
  • Frequency Group: UHF
