Same model may have multiple batches, images only for reference.

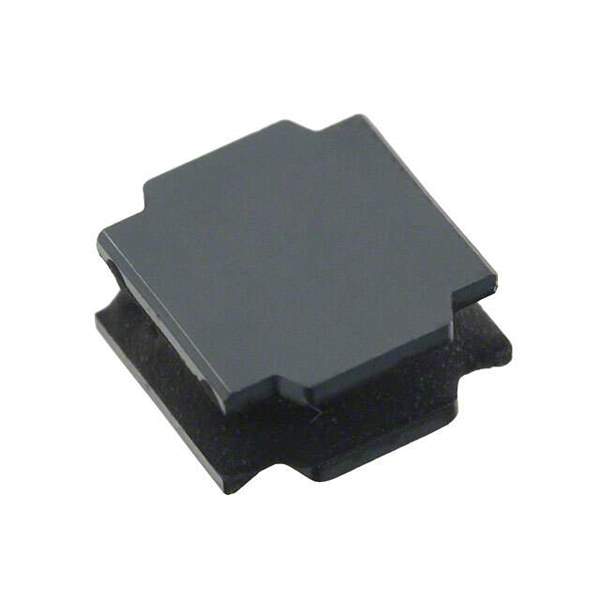

NRS8040T3R6NJGJ Real Image
Same model may have multiple batches, images only for reference.

NRS8040T3R6NJGJ

Part No NRS8040T3R6NJGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 3.6μH
Tolerance ±30%
Current Rating 4.9A
Current - Saturation 6.4A
Shielding Shielded
DC Resistance (DCR) 19.5 mOhm Max
Frequency - Self Resonant 34MHz
Operating Temperature Range -25°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 1232152-NRS8040T3R6NJGJ
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Family Name NR
Introduction Date October 25, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NRS8040T3R6NJGJ CAD Model

Description

The Taiyo Yuden NRS series NRS8040T3R6NJGJ is a wirewound inductor with an inductance of 3.6μH.

  • Manufacturer: Taiyo Yuden
  • Inductance: 3.6μH
  • Shielded: Yes
  • Current Rating: 4.9A
  • Tolerance: ±30%
  • Operating Temperature Range: -25°C to 125°C
  • Package: Non-standard
  • Mounting: SMD
  • Material: Ferrite
  • DC Resistance (DCR): 19.5 mOhm Max
  • Frequency Self-Resonant: 34MHz
  • Test Frequency: 100kHz
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Supply and Demand Status: Limited
  • Quantity per Package: 1k pcs
