Same model may have multiple batches, images only for reference.

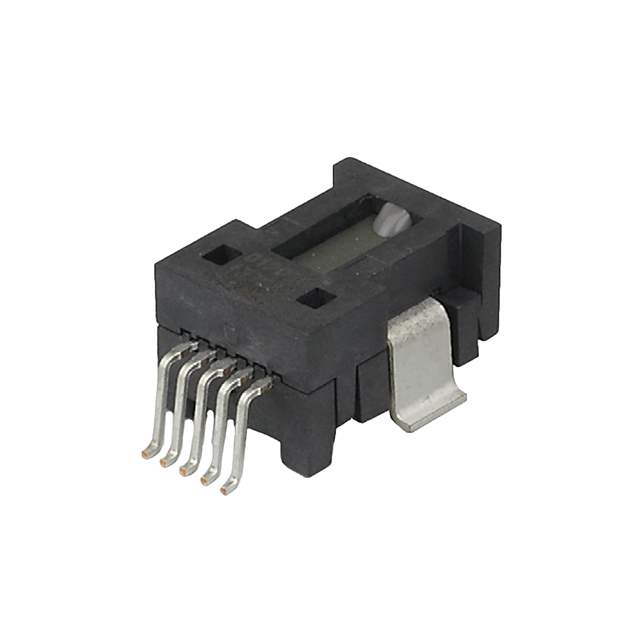

LA01M035S05 Real Image
Same model may have multiple batches, images only for reference.

LA01M035S05

Part No LA01M035S05
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR
Datasheet
LA01M035S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 35A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 60mV/A
Frequency DC to 400kHz
Linearity ±1%
Accuracy ±1%
Supply Voltage - Operating 4.5 V to 5.5 V
Response Time 1μs
Current - Supply (Max) 10mA
Temperature Range - Operating -40°C to 90°C
Polarization Bidirectional
Mounting SMD (SMT)
Dimension Module
Win Source Part Number 1080949-LA01M035S05
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 13
Ultra Librarian 3D Model Ultra Librarian LA01M035S05 CAD Model

Description

The Tamura DC to 400kHz ratiometric voltage sensor is a bidirectional sensor type that uses Hall Effect technology.

  • Sensor Type: Bidirectional
  • Technology: Hall Effect
  • Measurement: AC/DC
  • Sensitivity: 60mV/A
  • Response Time: 1μs
  • Maximum Supply Current: 10mA
  • Current Sensing Capacity: 35A
  • Linearity: ±1%
  • Accuracy: ±1%
  • Mounting: SMD (SMT)
  • Packaging: Bulk
  • Operating Temperature: -40°C to 90°C
  • Operating Supply Voltage: 4.5 V to 5.5 V
  • Market Status: Popular
  • Supply and Demand Status: Sufficient
