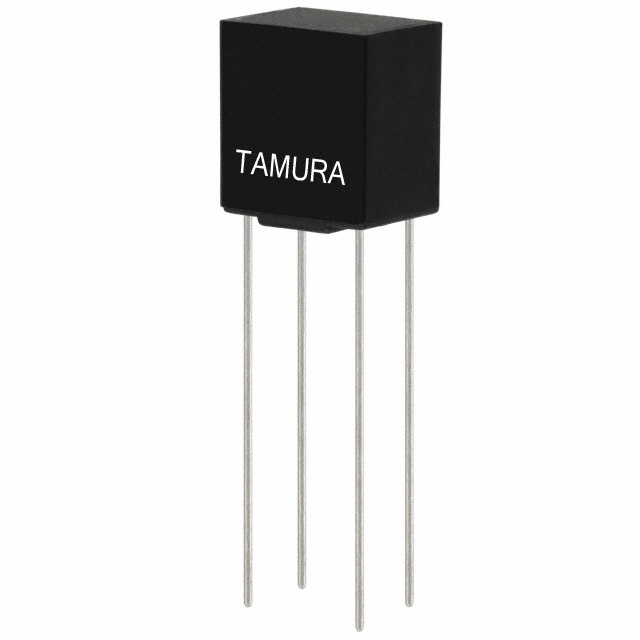

Same model may have multiple batches, images only for reference.
MET-01 Tamura – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MET-01

Part No MET-01
Manufacturer Tamura
Catalog Audio Transformers
Description AUDIO XFMR 200KCT / 1KCT TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Turns Ratio - Primary 14.1:1
Impedance - Primary (Ohms) 200kCT
Impedance - Secondary (Ohms) 1kCT
DC Resistance (DCR) - Primary 5.3kOhm
DC Resistance (DCR) - Secondary 120Ohm
Transformer Type Data/Voice Coupling
Frequency Range 300Hz ~ 100kHz
Frequency Response ±2dB
Voltage - Isolation 500VRMS @ 30 Seconds
Power Level 10mW Max @ 300Hz
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Size / Dimension 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) 0.465" (11.80mm)
Termination Style PC Pin
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1511124-MET-01
Ultra Librarian 3D Model Ultra Librarian MET-01 CAD Model
