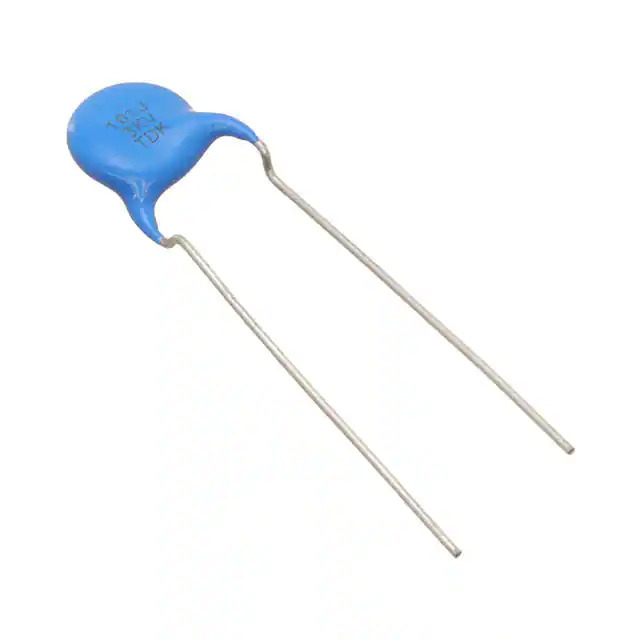

Same model may have multiple batches, images only for reference.

CC45SL3FD101JYVNA

Name: CC45SL3FD101JYVNA
Brand: TDK Corporation
SKU: 1359996
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CC45SL3FD101JYVNA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 100PF 3KV SL RADIAL / 100 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	TDK Corporation
Series	CC45
Product Status	Active
Capacitance	100 pF
Tolerance	±5%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	SL
Temperature Range - Operating	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.335" Dia (8.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Win Source Part Number	1359996-CC45SL3FD101JYVNA
Ultra Librarian 3D Model	Ultra Librarian CC45SL3FD101JYVNA CAD Model

Alternative Products

Description

The CC45SL3FD101JYVNA is a ceramic capacitor from TDK Corporation's CC45 series.

Series: CC45
Capacitance: 100 pF
Tolerance: ±5%
Voltage Rating: 3000V (3kV)
Mounting Type: Through Hole
Package / Case: Radial, Disc
Lead Spacing: 0.295" (7.50mm)
Size / Dimension: 0.335" (8.50mm)
Height - Seated (Max): 0.492" (12.50mm)
ECCN: EAR99
Status: Active
