CK45-B3DD222KYVNA TDK Corporation

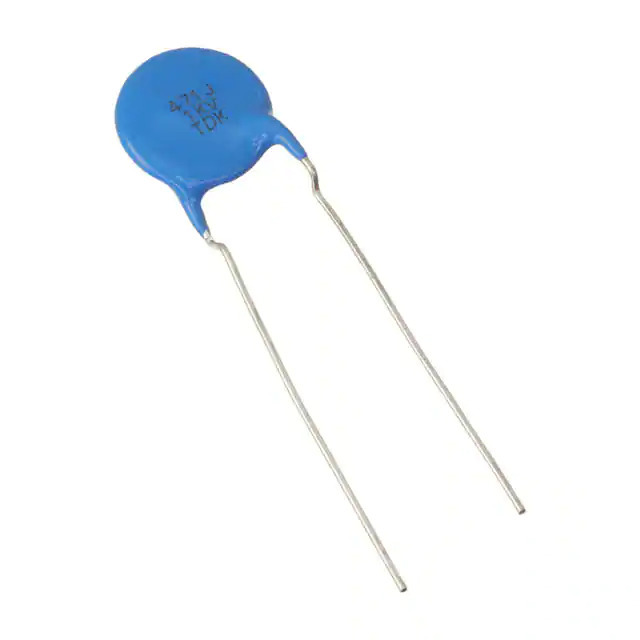

Same model may have multiple batches, images only for reference.

CK45-B3DD222KYVNA

Part No CK45-B3DD222KYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 2KV RADIAL / 2200 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Product Status Active
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359984-CK45-B3DD222KYVNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3DD222KYVNA CAD Model

Description

The 1359984-CK45-B3DD222KYVNA is a ceramic capacitor from TDK Corporation.

  • Series: CK45
  • Package / Case: Radial, Disc
  • Capacitance: 2200 pF
  • Tolerance: ±10%
  • Voltage Rating: 2000V (2kV)
  • Application: General Purpose
  • Operating Temperature: -25°C to 105°C
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" Dia (10.00mm)
  • Feature: High Voltage
  • Product Status: Active
  • Packaging: Bulk
  • HTSUS Code: 8532.24.0060
  • ECCN: EAR99
