Same model may have multiple batches, images only for reference.

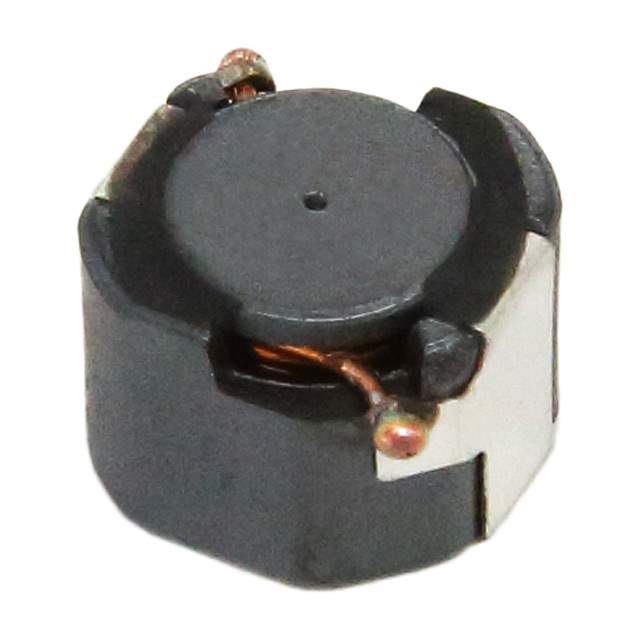

CLF6045T-4R7N-H Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-4R7N-H

Part No CLF6045T-4R7N-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.2A 23 MOHM SMD / Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 3.2A 0.023Ohm DCR Automotive T/R
Datasheet
CLF6045T-4R7N-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CLF-H
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 3.2A
Current - Saturation 2.5A
Shielding Shielded
DC Resistance (DCR) 23 mOhm
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771593-CLF6045T-4R7N-H
Popularity Medium
Supply and Demand Status Limited
Family Name CLF
Introduction Date October 31, 2012
Country of Origin China, Philippines, United States of America
Ultra Librarian 3D Model Ultra Librarian CLF6045T-4R7N-H CAD Model

Description

The TDK Corporation CLF6045T-4R7N-H is a wirewound inductor designed for use in a wide range of electronic applications.

  • Current Rating: 3.2A
  • Shielding: Shielded
  • Inductance: 4.7μH
  • Tolerance: ±30%
  • Operating Temperature Range: -40°C to 125°C
