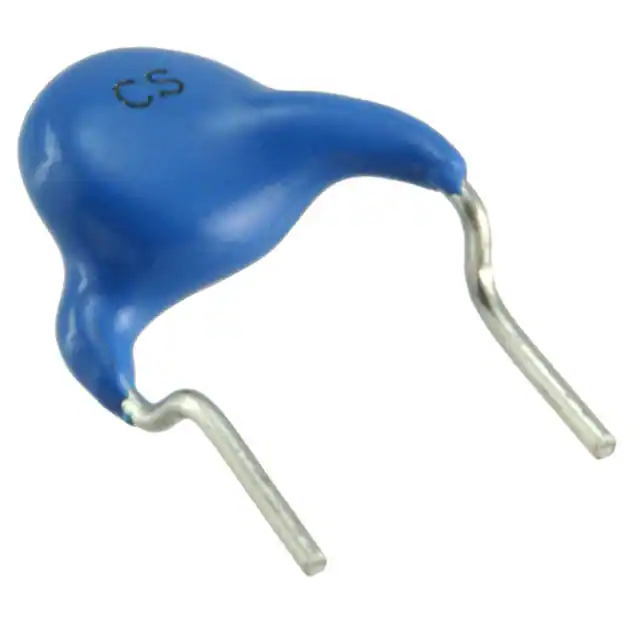

CS45-B2GA471K-NKA TDK Corporation
Same model may have multiple batches, images only for reference.

CS45-B2GA471K-NKA

Part No CS45-B2GA471K-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 440VAC RADIAL / 470 pF ±10% 440VAC Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS45
Package Bulk
Product Status Active
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 440VAC
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.276" Dia (7.00mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360547-CS45-B2GA471K-NKA
Ultra Librarian 3D Model Ultra Librarian CS45-B2GA471K-NKA CAD Model

Description

The TDK Corporation CS45 series ceramic capacitor is a high voltage component with a capacitance of 470 pF.

  • Series: CS45
  • Capacitance: 470 pF
  • Tolerance: ±10%
  • Rated Voltage: 440VAC
  • Package/Case: Radial, Disc
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.276" Dia (7.00mm)
  • Application: Safety
  • Temperature Coefficient: B
  • ECCN: EAR99
  • Product Status: Active
