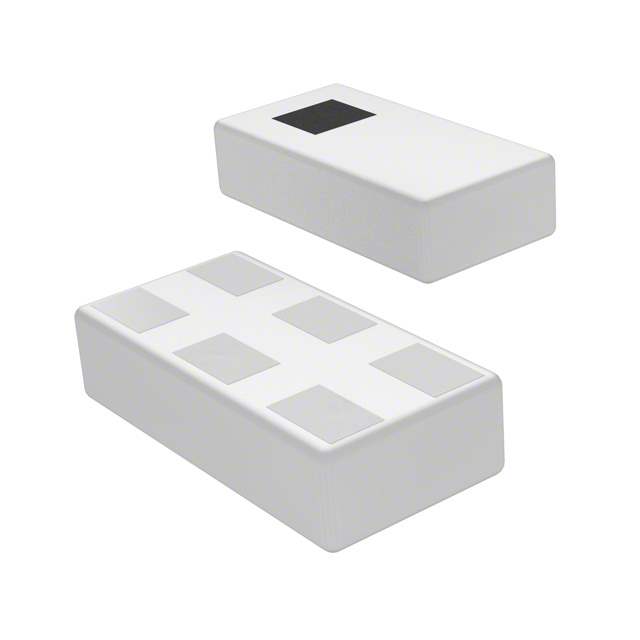

DPX165950DT-8030A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8030A1

Part No DPX165950DT-8030A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER 2.4/5GHZ WLAN
Datasheet
DPX165950DT-8030A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 4.9GHz to 5.95GHz
Low Band Attenuation (min / max dB) 20.00dB / 31.00dB
High Band Attenuation (min / max dB) 20.00dB / 28.00dB
Return Loss (Low Band / High Band) 9.5dB / 9.5dB
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 6 PC Pad
Win Source Part Number 040083-DPX165950DT-8030A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8030A1 CAD Model

Description

DPX165950DT-8030A1 Ceramic Filter

The DPX165950DT-8030A1 is a high-performance ceramic filter designed for use in RF communication systems. Its compact and durable design makes it ideal for a wide range of applications.

  • Applications/Projects:
    • Wireless communication devices
    • Remote sensing systems
    • Signal processing
  • Features and Benefits:
    • High selectivity and low insertion loss for improved signal clarity
    • Robust design for operation in challenging environments
    • Compact size for easy integration into various electronic systems
  • Additional Details:
    • Frequency Range: 1659.5 MHz
    • Temperature Range: -40 to +85°C
    • Dimensions: 1.8 x 1.4 mm
