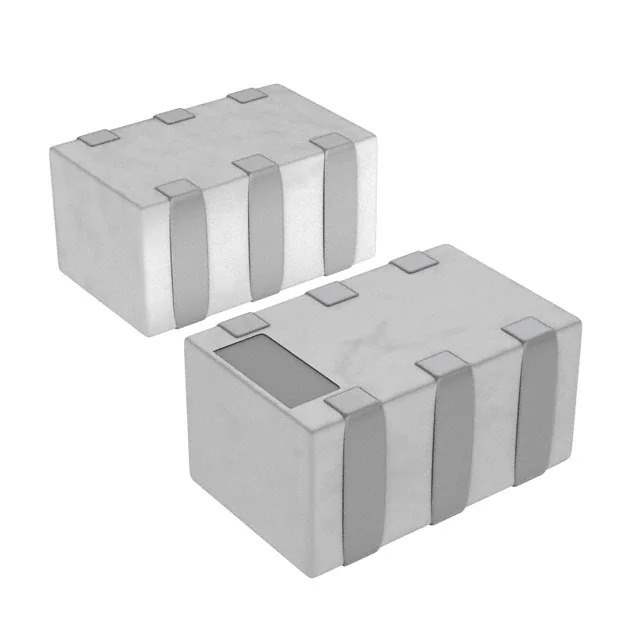

DPX202700DT-4035B5 Real Image
Same model may have multiple batches, images only for reference.

DPX202700DT-4035B5

Part No DPX202700DT-4035B5
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 1159MHZ/2.31GHZ 0805 / RF Diplexer 698MHz ~ 1.62GHz / 1.92GHz ~ 2.7GHz 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Product Status Active
Type Diplexer
Frequency Bands (Low / High) 698MHz ~ 1.62GHz / 1.92GHz ~ 2.7GHz
Low Band Attenuation (min / max dB) 10.00dB / 22.00dB
High Band Attenuation (min / max dB) 10.00dB / 30.00dB
Return Loss (Low Band / High Band) 10.0dB / 18.0dB
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 6 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 917205-DPX202700DT-4035B5
Ultra Librarian 3D Model Ultra Librarian DPX202700DT-4035B5 CAD Model

Description

The 917205-DPX202700DT-4035B5 is a diplexer from the DPX series by TDK Corporation. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: Diplexer
  • Series: DPX
  • Manufacturer: TDK Corporation
  • Application: RF and Wireless
  • Function: RF Multiplexer
  • Frequency Bands: 698MHz to 1.62GHz and 1.92GHz to 2.7GHz
  • Low Band Attenuation: 10.00dB to 22.00dB
  • High Band Attenuation: 10.00dB to 30.00dB
  • Return Loss (Low Band): 10.0dB
  • Return Loss (High Band): 18.0dB
  • Packaging: Tape and Reel
  • Standard Package Quantity: 2,000 pcs
  • Status: Active
