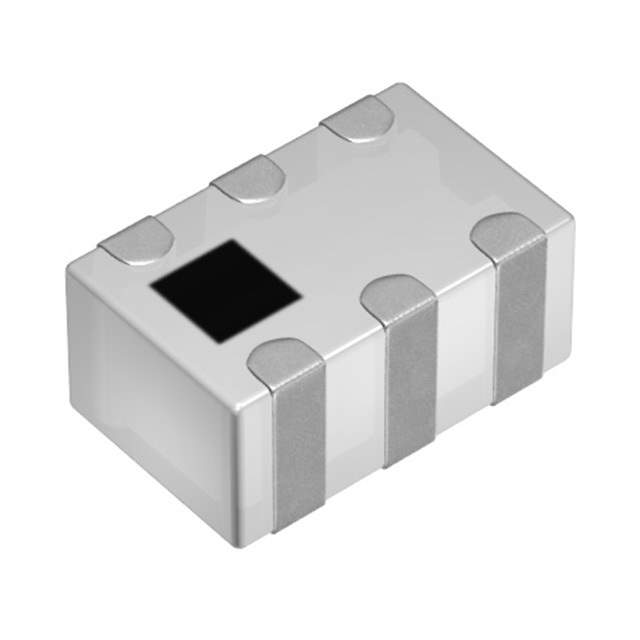

DPX205850DT-4055A1 Real Image
Same model may have multiple batches, images only for reference.

DPX205850DT-4055A1

Part No DPX205850DT-4055A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 1345MZ/4.125GHZ 0805
Datasheet
DPX205850DT-4055A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 9 Weeks
Features RF Diplexer 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz 0805 (2012 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0805 (2012 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 445-175376-1, 445-175376-6, 445-175376-2
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869249-DPX205850DT-4055A1
Ultra Librarian 3D Model Ultra Librarian DPX205850DT-4055A1 CAD Model

Description

The TDK Corporation DPX205850DT-4055A1 is a limited supply electronic component that is manufactured by TDK Corporation.

  • Manufacturer: TDK Corporation
  • Product Name: DPX205850DT-4055A1
  • Win Source Part Number: 869249-DPX205850DT-4055A1
  • Series: DPX
  • Feature: RF diplexer 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz 0805 (2012 Metric), 6 PC Pad
  • Package: reel - TR
  • Mounting: 0805 (2012 Metric), 6 PC Pad
  • Supply and Demand Status: Limited
  • Quantity per package: 2000
  • Estimated production lead time: 9 weeks
