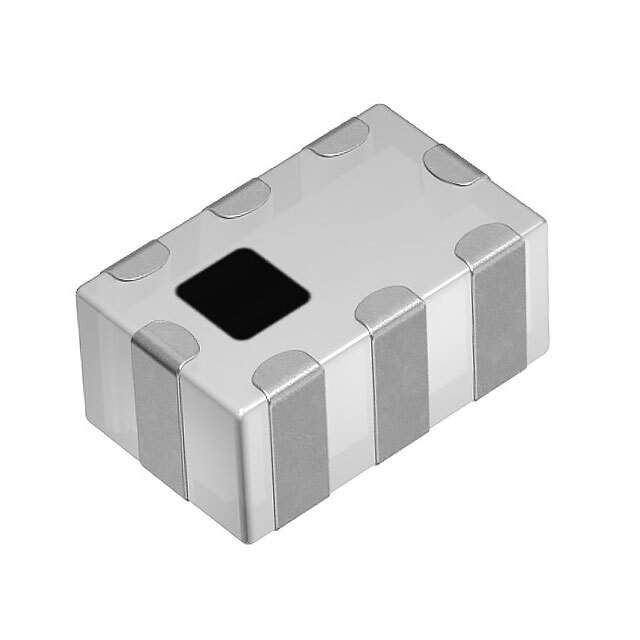

TPX205950MT-7004A1 Real Image
Same model may have multiple batches, images only for reference.

TPX205950MT-7004A1

Part No TPX205950MT-7004A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF TRIPLEXER 2.45/5.425GHZ 0805 / Multilayer Triplexer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Triplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 20.00dB / 29.00dB
Return Loss (Low Band / High Band) 9.5dB / 9.5dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 8 PC Pad
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803460-TPX205950MT-7004A1
Ultra Librarian 3D Model Ultra Librarian TPX205950MT-7004A1 CAD Model

Description

The TDK Corporation Triplexer is a high-quality electronic component that is designed to be mounted in an SMD style.

  • Packaging: Reel
  • Frequency Range: 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
  • Low Band Attenuation: 20.00dB to 29.00dB
  • Low Band Return Loss: 9.5dB
  • High Band Return Loss: 9.5dB
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
