Same model may have multiple batches, images only for reference.

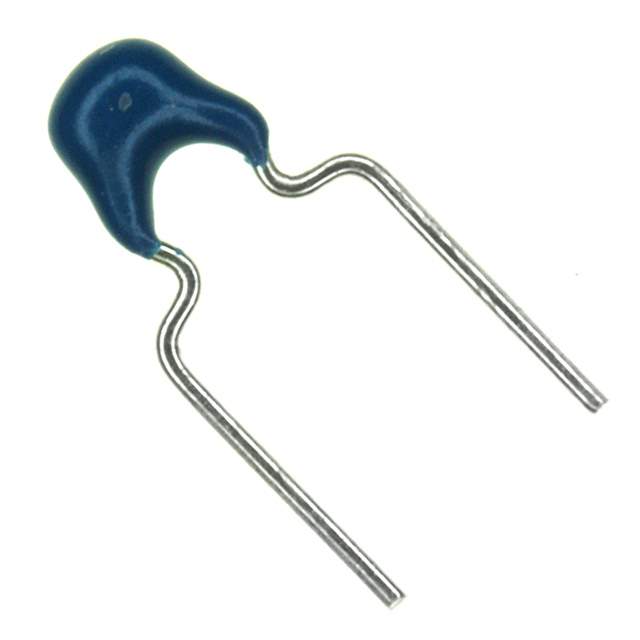

FK28C0G1H561JN006 Real Image
Same model may have multiple batches, images only for reference.

FK28C0G1H561JN006

Part No FK28C0G1H561JN006
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 560PF 50V C0G RADIAL / 560 pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series FK
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 560 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.157" L x 0.098" W (4.00mm x 2.50mm)
Height - Seated (Max) 0.217" (5.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Standard Package 2,000
Win Source Part Number 1005165-FK28C0G1H561JN006
Ultra Librarian 3D Model Ultra Librarian FK28C0G1H561JN006 CAD Model

Description

The FK series ceramic capacitor by TDK Corporation is a general-purpose capacitor with a capacitance of 560 pF and a voltage rating of 50V.

  • Series: FK
  • Capacitance: 560 pF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Package Type: Radial
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Formed leads - kinked
  • Height Seated: 0.217" (5.50mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • Dimensions: 0.157" L x 0.098" W (4.00mm x 2.50mm)
  • Standard Package: 2,000
  • Failure Rate: Not Specified
  • Application: General-Purpose
