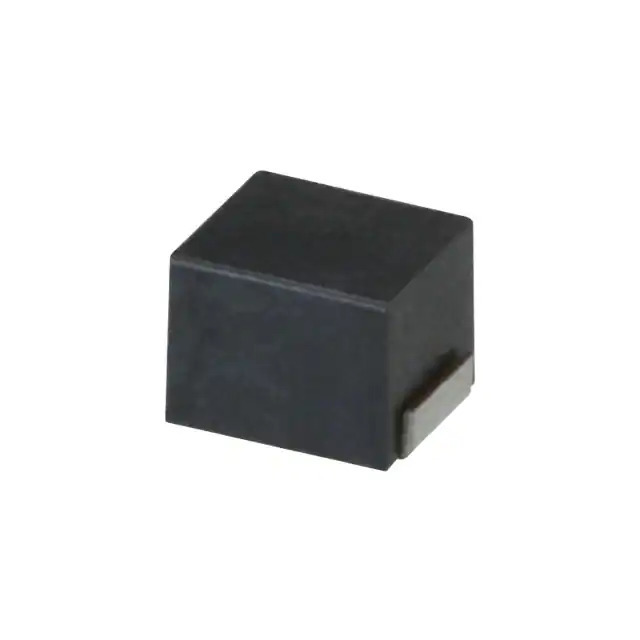

NLV25T-3R9J-EFD TDK Corporation
Same model may have multiple batches, images only for reference.

NLV25T-3R9J-EFD

Part No NLV25T-3R9J-EFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.9UH 180MA 2.1OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series NLV-EFD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.9 µH
Tolerance ±5%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 2.1Ohm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 48MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370607-NLV25T-3R9J-EFD
Ultra Librarian 3D Model Ultra Librarian NLV25T-3R9J-EFD CAD Model

Description

The NLV25T-3R9J-EFD is a drum core, wirewound inductor manufactured by TDK Corporation.

  • Series: NLV-EFD
  • Mounting Type: Surface mount applications
  • Temperature Range: -40°C to 105°C
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.075" (1.90mm)
  • Inductance: 3.9 μH
  • Current Rating: 180 mA
  • Tolerance: ±5%
  • DC Resistance: 2.1Ohm max
  • Shielding: Unshielded
  • Q Value: 30 @ 7.96MHz
  • Self-Resonant Frequency: 48MHz
  • AEC-Q200 Rated: Yes
  • Package: 1008 (2520 Metric) tape and reel
