Same model may have multiple batches, images only for reference.

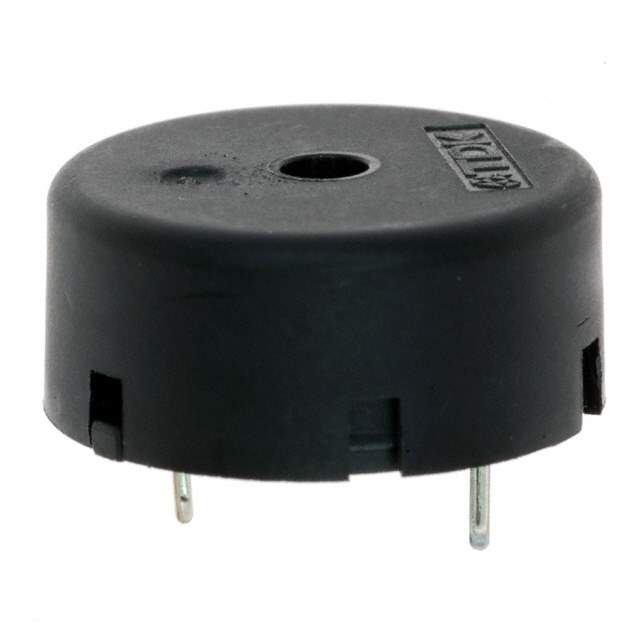

PS1720P02 Real Image
Same model may have multiple batches, images only for reference.

PS1720P02

Part No PS1720P02
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 30V TH
Datasheet
PS1720P02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer TDK Corporation
Packaging Bulk
Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating 3V
Voltage Range 30V (Max)
Frequency 2kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 70dB @ 3V, 10cm
Port Location Top
Temperature Range - Operating -10°C to 70°C
Mounting Through Hole
Termination PC Pins
Height - Seated (Max) 0.327" (8.30mm)
Win Source Part Number 1003057-PS1720P02
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS1720P02 CAD Model

Description

The PS1720P02 piezo transducer from TDK Corporation's is a high-quality audio product designed to operate in temperatures ranging from -10°C to 70°C.

  • Frequency: 2kHz
  • Voltage Range: 3V
  • Type: through-hole
  • Termination: PC pins
  • Port Location: top
  • Type: single tone transducer
  • Drive: externally driven
  • Sound Pressure Level: 70dB @ 3V, 10cm
  • Supply and Demand Status: balanced
  • Status: currently active
