Same model may have multiple batches, images only for reference.

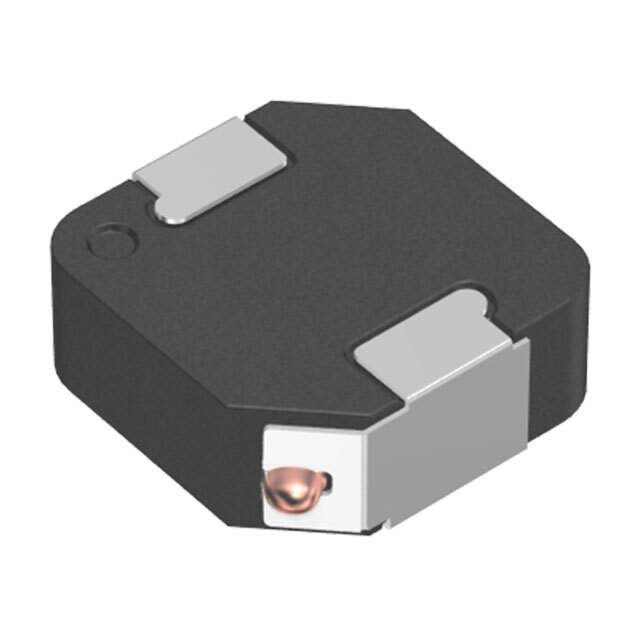

SPM10040T-4R7M-HZ Real Image
Same model may have multiple batches, images only for reference.

SPM10040T-4R7M-HZ

Part No SPM10040T-4R7M-HZ
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-HZ
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 13 A
Current - Saturation (Isat) 6.3A
Shielding Shielded
DC Resistance (DCR) 14.06mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 445-180238-6,445-180238-2,445-180238-1
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272573-SPM10040T-4R7M-HZ
Ultra Librarian 3D Model Ultra Librarian SPM10040T-4R7M-HZ CAD Model

Description

The SPM-HZ series inductors from TDK Corporation are drum core, wirewound inductors that come with a shielding feature.

  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 14.06mOhm Max
  • Current Rating: 13 A
  • Height (Seated): 0.157" (4.00mm)
  • Dimension: 0.421" L x 0.394" W (10.70mm x 10.00mm)
  • AEC-Q200: Rated
  • Operating Temperature: -40°C ~ 125°C
