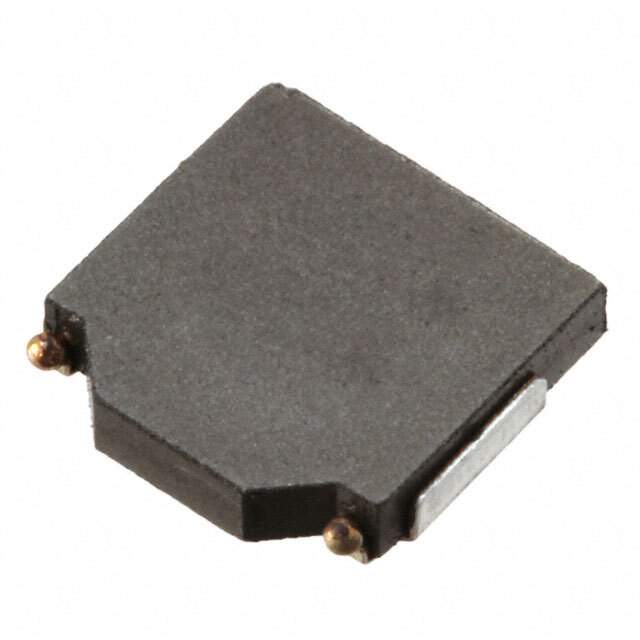

SPM5012T-2R2MT Real Image
Same model may have multiple batches, images only for reference.

SPM5012T-2R2MT

Part No SPM5012T-2R2MT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 4.6A
Shielding Shielded
DC Resistance (DCR) 78.8mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272614-SPM5012T-2R2MT
Ultra Librarian 3D Model Ultra Librarian SPM5012T-2R2MT CAD Model

Description

The SPM series SMD drum core, wirewound fixed inductor from TDK Corporation has a Win Source Part Number of 1272614-SPM5012T-2R2MT.

  • Shielded: Yes
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating: 2.7 A
  • Inductance Frequency Test: 100 kHz
  • DC Resistance: 78.8mOhm Max
  • Height: 0.047" (1.20mm)
  • HTSUS: 8504.50.4000
