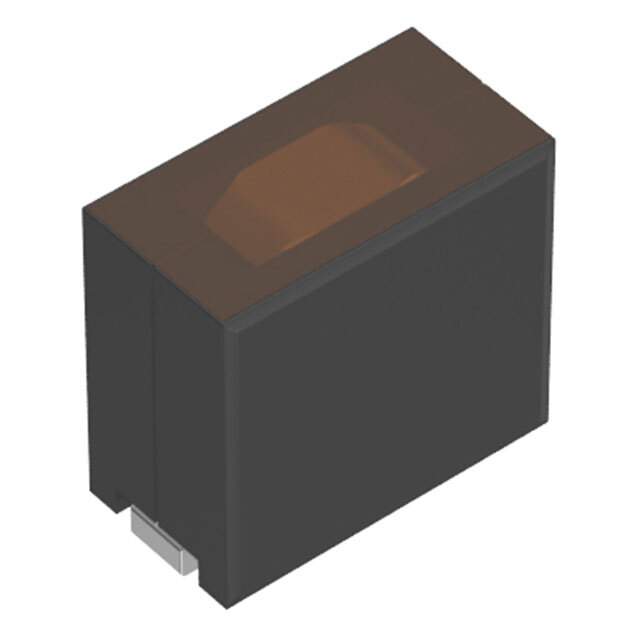

VLBU9664100LT-R10L Real Image
Same model may have multiple batches, images only for reference.

VLBU9664100LT-R10L

Part No VLBU9664100LT-R10L
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100NH 75A 0.125MOHM SM / 100 nH Unshielded Drum Core, Wirewound Inductor 75 A 0.125mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLBU
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 nH
Tolerance ±15%
Current Rating (Amps) 75 A
Current - Saturation (Isat) 110A
Shielding Unshielded
DC Resistance (DCR) 0.125mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.378" L x 0.252" W (9.60mm x 6.40mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1341223-VLBU9664100LT-R10L
Ultra Librarian 3D Model Ultra Librarian VLBU9664100LT-R10L CAD Model

Description

The 1341223-VLBU9664100LT-R10L is a fixed inductor with a 100 nH inductance and a current rating of 75 A.

  • Inductance: 100 nH
  • Current Rating: 75 A
  • Series: VLBU
  • Type: Drum Core, Wirewound
  • Packaging: Tape & Reel (TR)
  • Standard Package: 400
  • Tolerance: ±15%
  • DC Resistance (DCR): 0.125mOhm
  • Shielding: Unshielded
  • Package / Case: Nonstandard
  • Size / Dimension: 0.378" L x 0.252" W (9.60mm x 6.40mm)
  • Height - Seated (Max): 0.394" (10.00mm)
  • Material - Core: Ferrite
  • Inductance Frequency - Test: 100 kHz
  • Operating Temperature: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: TDK Corporation
