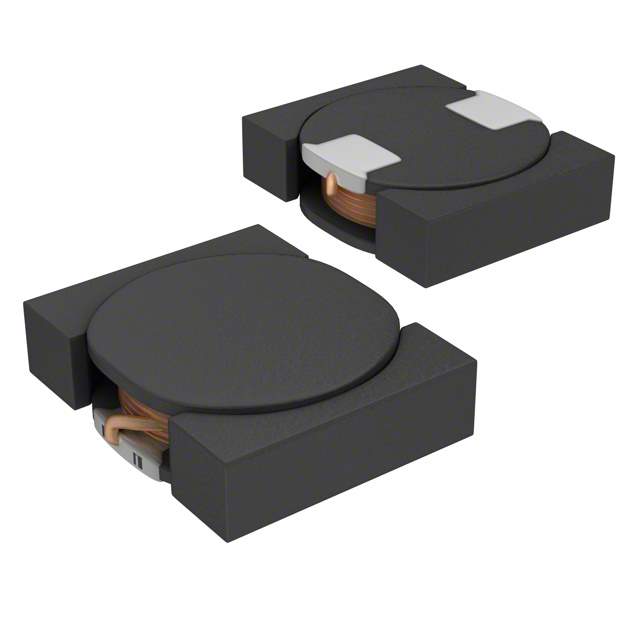

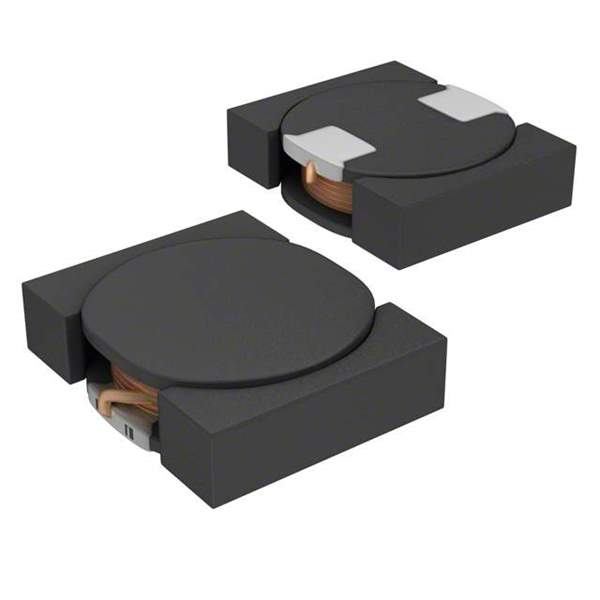

VLF403210MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF403210MT-4R7M

Part No VLF403210MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.61A 140 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 1.61A
Current - Saturation 1.09A
Shielding Shielded
DC Resistance (DCR) 140mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806843-VLF403210MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF403210MT-4R7M CAD Model

Description

{"ProductId":745424,"FormattedDescription":"

The TDK Corporation VLF403210MT-4R7M is a wirewound inductor with a ferrite core.

  • Inductance: 4.7µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 140mOhm Max
  • Current Saturation: 1.09A
  • Operating Temperature: -40°C to 105°C
  • Mounting: SMD
  • Dimensions: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Height Seated (Maximum): 0.039" (1.00mm)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 1.61A
  • Inductance Frequency Test: 1MHz
"}
