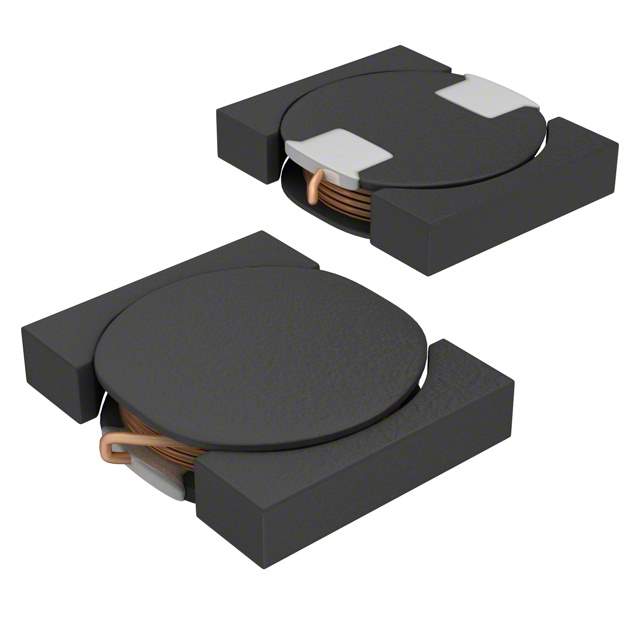

VLF504010MT-150M Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-150M

Part No VLF504010MT-150M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 980MA 400 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating (Amps) 980mA
Current - Saturation 740mA
Shielding Shielded
DC Resistance (DCR) 400mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806847-VLF504010MT-150M
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-150M CAD Model

Description

{"ProductId":745428,"FormattedDescription":"

The TDK Corporation VLF504010MT-150M is a wirewound type inductor that offers a 15 µH inductance with a tolerance of ±20%.

  • Inductance: 15 µH
  • Tolerance: ±20%
  • Core: Ferrite
  • Shielded: Yes
  • Current Saturation: 740 mA
  • DC Resistance: 400 mOhm maximum
  • Manufacturer Package: Nonstandard
  • Height: 0.039 inches
  • Current Rating: 980 mA
  • Temperature Range: -40°C to 105°C
"}
