Same model may have multiple batches, images only for reference.

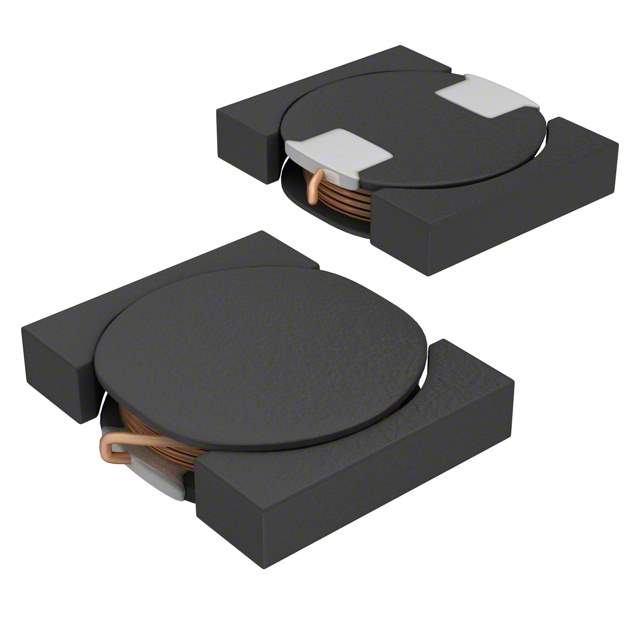

VLF504010MT-1R5N Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-1R5N

Part No VLF504010MT-1R5N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 2.86A 44 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating (Amps) 2.86A
Current - Saturation 2.3A
Shielding Shielded
DC Resistance (DCR) 44mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808549-VLF504010MT-1R5N
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-1R5N CAD Model

Description

The TDK Corporation VLF504010MT-1R5N Wirewound Shielded Inductor is designed for use in SMD applications from TDK Corporation.

  • Inductance: 1.5μH
  • Tolerance: ±30%
  • Core Material: ferrite
  • Current Saturation: 2.3A
  • Package/Case: nonstandard
  • Dimensions: 0.197" L x 0.157" W (5.00mm x 4.00mm)
  • Height Seated (Maximum): 0.039" (1.00mm)
  • Temperature Range: -40°C to 105°C
  • DC Resistance: 44mOhm Max
  • Current Rating: 2.86A
