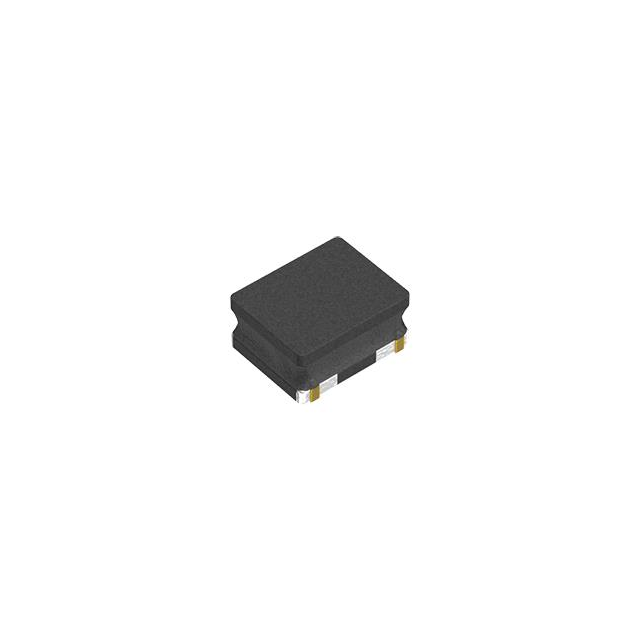

The VLS201610CX-1R0M is a shielded power inductor manufactured by TDK Corporation. It is designed for use in power supply circuits and other applications requiring efficient energy storage and filtering.

Applications:

• DC-DC converters
• Power supplies for portable devices
• Smartphones
• Tablets
• Digital cameras
• Noise filtering in signal lines

Features:

• Shielded Construction: Reduces electromagnetic interference (EMI).
• Compact Size: Small footprint for space-constrained applications.
• High Inductance Value: 1.0 μH inductance.
• High Current Capability: Can handle relatively high currents.
• Low DC Resistance (DCR): Minimizes power loss.
• Excellent Temperature Stability: Maintains stable performance over a wide temperature range.

Benefits:

• Reduced EMI: Shielded construction minimizes interference with other components.
• Space Saving: Compact size allows for use in small devices.
• Efficient Power Conversion: Low DCR improves power efficiency.
• Stable Performance: Excellent temperature stability ensures reliable operation.
• Improved Signal Integrity: Effective noise filtering enhances signal quality.

Additional Details:

The VLS201610CX series is characterized by its small size and shielded construction, making it suitable for use in densely populated circuit boards. The 1R0M designation indicates an inductance of 1.0 μH, with the 'M' likely representing the tolerance. Key specifications include the saturation current (Isat) and rated current (Irms), which define the maximum current the inductor can handle before its inductance drops significantly or it overheats, respectively. The operating temperature range is also a crucial parameter to consider for different application environments. The datasheet will provide details on the specific DCR, Isat, and Irms values, as well as the self-resonant frequency (SRF) of the inductor.
