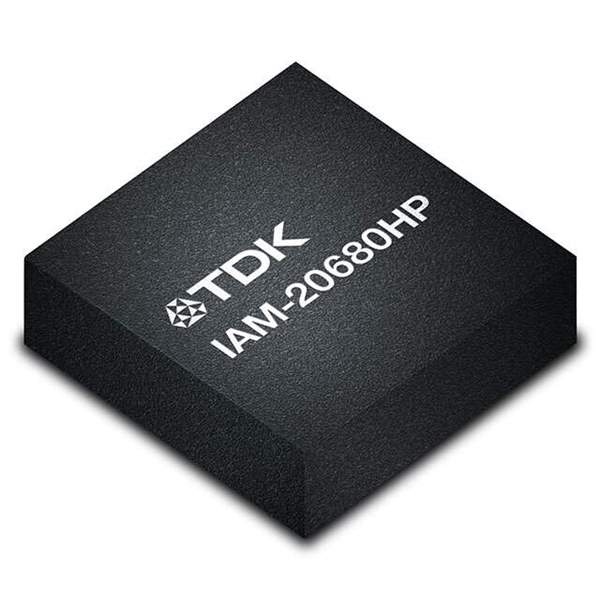

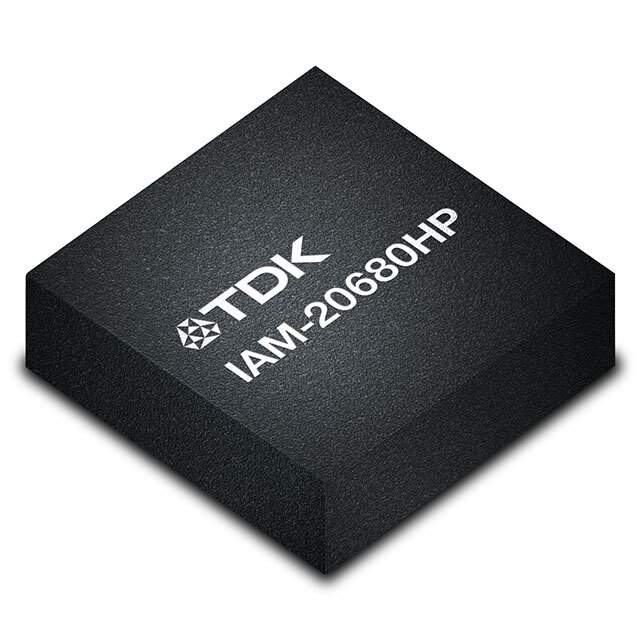

IAM-20680HP Real Image
Same model may have multiple batches, images only for reference.

IAM-20680HP

Part No IAM-20680HP
Manufacturer TDK InvenSense
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description 6 AXIS GYROSCOPE / Accelerometer, Gyroscope, 6 Axis Sensor I²C, SPI Output
Datasheet
IAM-20680HP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - IMUs (Inertial Measurement Units)
Manufacturer TDK InvenSense
Packaging Reel - TR
Sensor Type Accelerometer, Gyroscope, 6 Axis
Output Type I2C, SPI
Temperature Range - Operating -40°C ~ 85°C
Case / Package 16-WFLGA Module
Supplier Device Package 16-LGA (3x3)
Mounting Surface Mount
Base Product Number IAM-20680
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 9031.80.8085
Other Part Number 1428-IAM-20680HPCT,1428-IAM-20680HPDKR,1428-IAM-20680HPTR
Standard Package 5,000
Win Source Part Number 1336562-IAM-20680HP
Ultra Librarian 3D Model Ultra Librarian IAM-20680HP CAD Model

Description

The TDK InvenSense IAM-20680HP is a 6-axis motion sensor manufactured by TDK InvenSense.

  • Supplier Device Package: 16-LGA (3x3)
  • Output Type: I2C and SPI
  • Sensor Type: Accelerometer and Gyroscope
  • Temperature Range: -40°C to 85°C
  • MSL: 3 (168 hours)
