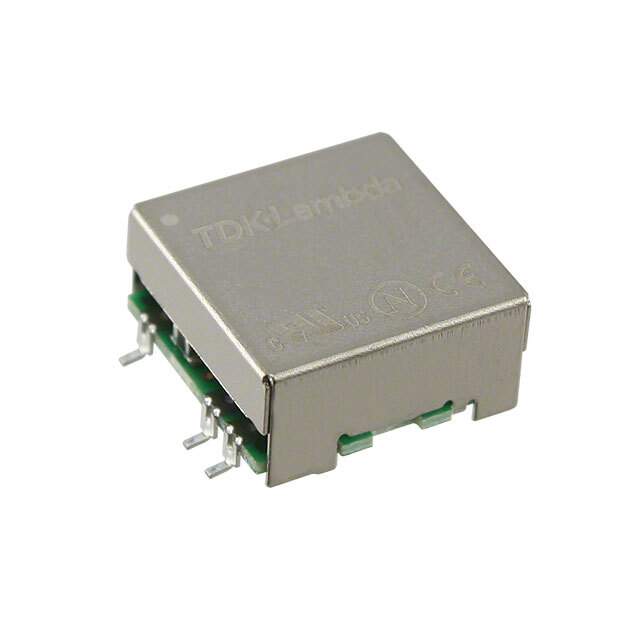

Same model may have multiple batches, images only for reference.

CC1R5-0512SR-E

Name: CC1R5-0512SR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1349410
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC1R5-0512SR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12-15V 1W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 125mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (1.5W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12 ~ 15V
Current - Output (Max)	125mA
Power (Watts)	1 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC1R5
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1349410-CC1R5-0512SR-E
Ultra Librarian 3D Model	Ultra Librarian CC1R5-0512SR-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc CC1R5-0512SR-E is a 1W isolated module power supply that is used in ITE (Commercial) applications.

Manufacturer: TDK-Lambda Americas Inc
Product Name: CC1R5-0512SR-E
Power: 1W
Application: ITE (Commercial)
Control Feature: Enable, active low
Maximum Current Output: 125mA
Voltage Isolation: 500V
Input Voltage Range: 4.5V to 9V
Mounting Type: Surface Mount
Temperature Range: -40°C to 85°C
