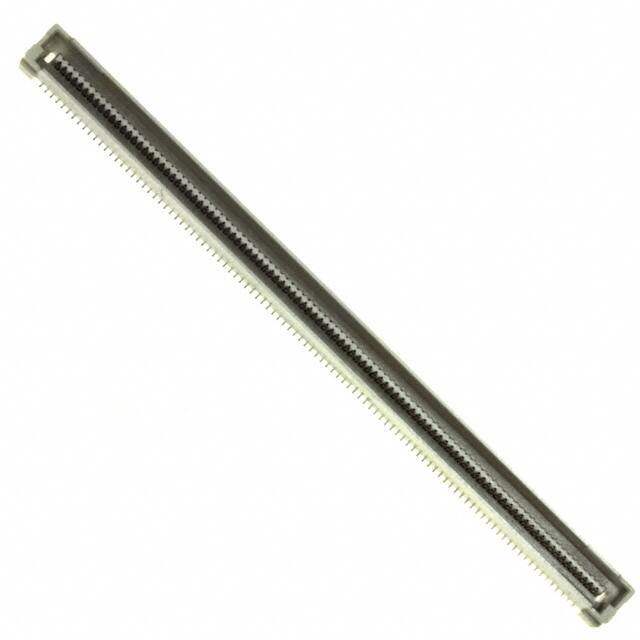

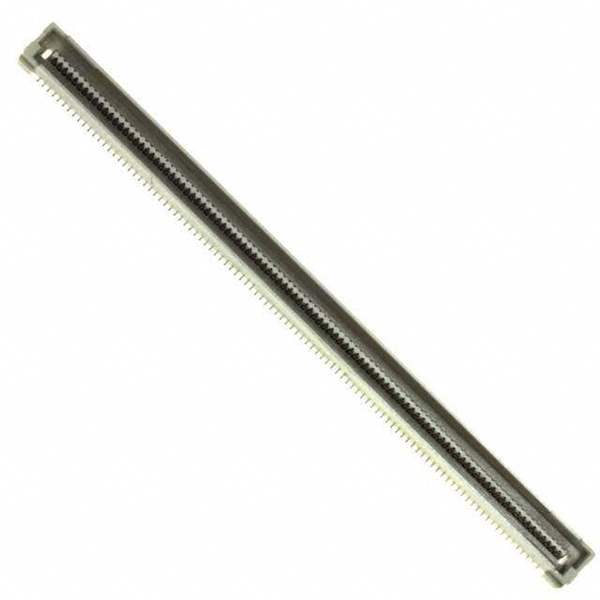

Same model may have multiple batches, images only for reference.

1-5179029-0

Name: 1-5179029-0
Brand: TE Connectivity
SKU: 854026
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-5179029-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG 200POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	TE Connectivity
Series	Free Height (FH)
Package	Tube
Product Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	200
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	6mm, 10mm, 14mm, 18mm
Height Above Board	0.220" (5.59mm)
Base Product Number	5179029
Standard Package	5 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854026-1-5179029-0
Ultra Librarian 3D Model	Ultra Librarian 1-5179029-0 CAD Model

Alternative Products

Description

The Free Height (FH) series connectors are versatile and reliable rectangular connectors designed for board-to-board applications.

Series: Free Height (FH)
Positions: 200
Pitch: 0.031" (0.80mm)
Connector Type: Plug
Contact Type: Center Strip
Contact Finish: Gold
Mated Stacking Heights: 6mm, 10mm, 14mm, and 18mm
Mounting Type: Surface Mount
Temperature Range: -45°C to 70°C
Manufacturer: TE Connectivity
