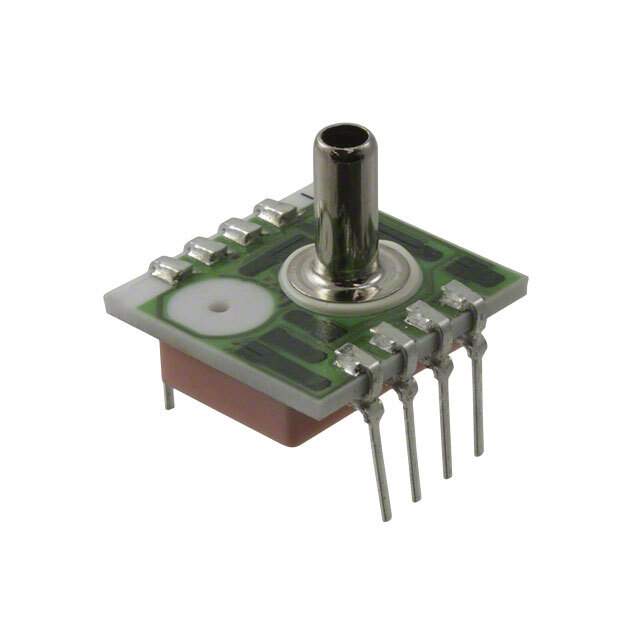

1220A-005G-3S Real Image
Same model may have multiple batches, images only for reference.

1220A-005G-3S

Part No 1220A-005G-3S
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSID 0-50MV 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Features Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.13" (3.3mm), Tube 0 mV ~ 50 mV 8-DIP Module
Manufacturer TE Connectivity
Package Tray
Part Status Obsolete
Operating Temperature Range -40°C ~ 125°C
Package 8-DIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-1220A-005G-3S, Q6579190, 1220A-005G-3S-ND, 223-1228
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905248-1220A-005G-3S
Ultra Librarian 3D Model Ultra Librarian 1220A-005G-3S CAD Model

Description

The TE Connectivity 905248-1220A-005G-3S is an electronic component that is designed for use in sensors.

  • Operating Temperature: -40°C ~ 125°C
  • Sensor Type: Pressure Sensor
  • Pressure Range: 5PSI (34.47kPa)
  • Type: Vented Gauge Male - 0.13" (3.3mm), Tube
  • Output: 0 mV ~ 50 mV
  • Package: 8-DIP module
  • Packaging: Tray
  • Quantity per Package: 40
