Same model may have multiple batches, images only for reference.

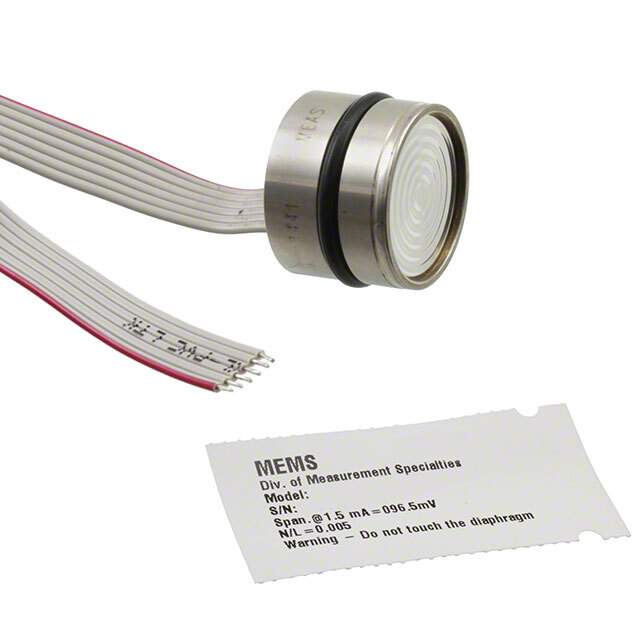

154N-015G-R Real Image
Same model may have multiple batches, images only for reference.

154N-015G-R

Part No 154N-015G-R
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE / Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Packaging Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Module
Base Product Number 154
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-154N-015G-R,223-1382-5
Standard Package 1
Win Source Part Number 1336496-154N-015G-R
Ultra Librarian 3D Model Ultra Librarian 154N-015G-R CAD Model

Description

The TE Connectivity Measurement Specialties 1336496-154N-015G-R is a pressure sensor/transducer with a Wheatstone bridge output type.

  • Output: 0 mV ~ 100 mV.
  • Accuracy: ±0.1%.
  • Applications: Board mount applications.
  • Pressure Type: Vented gauge.
  • Operating Pressure: 15PSI (103.42kPa).
  • Maximum Pressure: 45PSI (310.26kPa).
  • Temperature Compensation: Yes.
  • Package: Module.
  • Temperature Range: -40°C to 125°C.
  • Compliance: ROHS3 compliant.
  • ECCN: EAR99.
