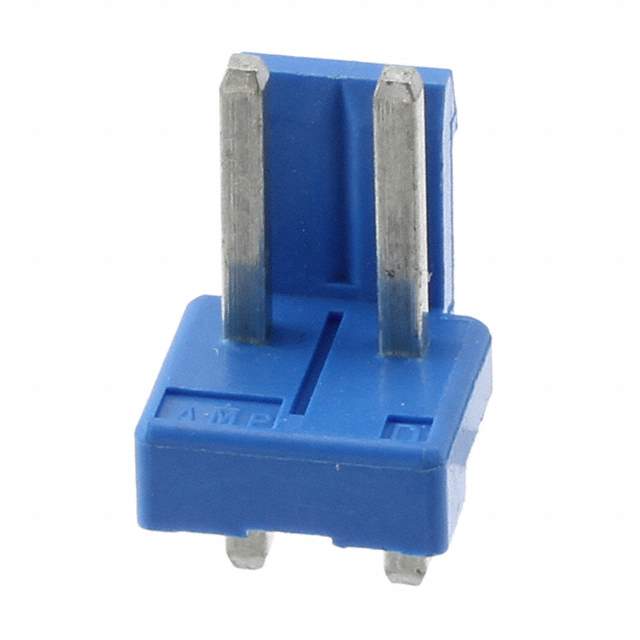

3-1123723-2 Real Image
Same model may have multiple batches, images only for reference.

3-1123723-2

Part No 3-1123723-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 3.96MM / Connector Header Through Hole 2 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.567" (14.40mm)
Insulation Height 0.118" (3.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Applications General Purpose, Industrial, Lighting
Base Product Number 1123723
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -3-1123723-2-SI,A117558
Standard Package 6,000
Win Source Part Number 1334332-3-1123723-2
Ultra Librarian 3D Model Ultra Librarian 3-1123723-2 CAD Model

Description

The TE Connectivity AMP Connectors 1334332-3-1123723-2 is a male pin header connector.

  • Connector Type: Male Pin Header
  • Row: Single-Row
  • Positions Loaded: 2
  • Pitch-Mating: 0.156" (3.96mm)
  • Mounting: Through-Hole
  • Standard Package: 6,000
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Insulation Color: Blue
  • Shrouding: Shrouded-1 Wall
  • Fastening Type: Friction Lock
  • Contact Type: Male Pin
  • Voltage Rating: 250VAC
  • Applications: General Purpose, Industrial, and Lighting
  • ECCN: EAR99
  • RoHS Compliant: Yes
