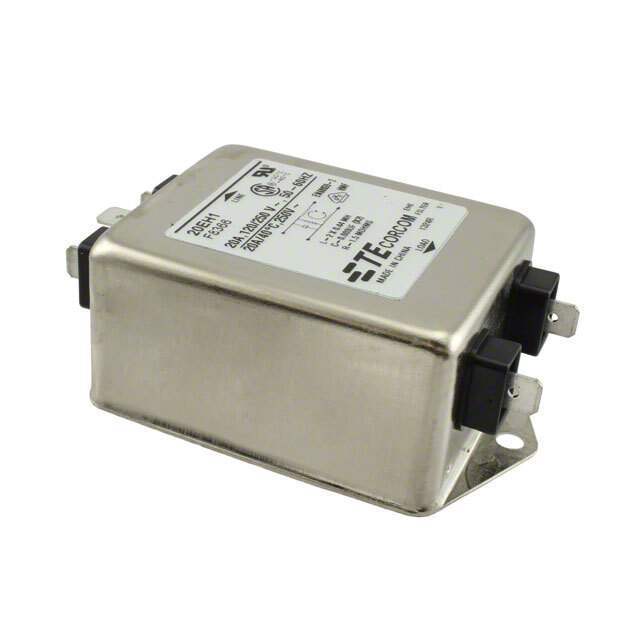

3-1609037-8 TE Connectivity Corcom Filters
Same model may have multiple batches, images only for reference.

3-1609037-8

Part No 3-1609037-8
Manufacturer TE Connectivity
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 20A CHASSIS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208519-3-1609037-8
Manufacturer TE Connectivity Corcom Filters
Category Filters- Power Line Filter Modules
Package Box
Product Status Active
Filter Type Single Phase
Configuration Single Stage
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency UL, VDE
Operating Temperature -10°C ~ 40°C
Ultra Librarian 3D Model Ultra Librarian 3-1609037-8 CAD Model

Description

The H Series filters are suitable for use in medical equipment and feature a 2 element circuit that provides general purpose performance above 1MHz with minimal leakage current. The new 20A versions are for chassis mount installations and offer either spade or threaded bolt terminations.
