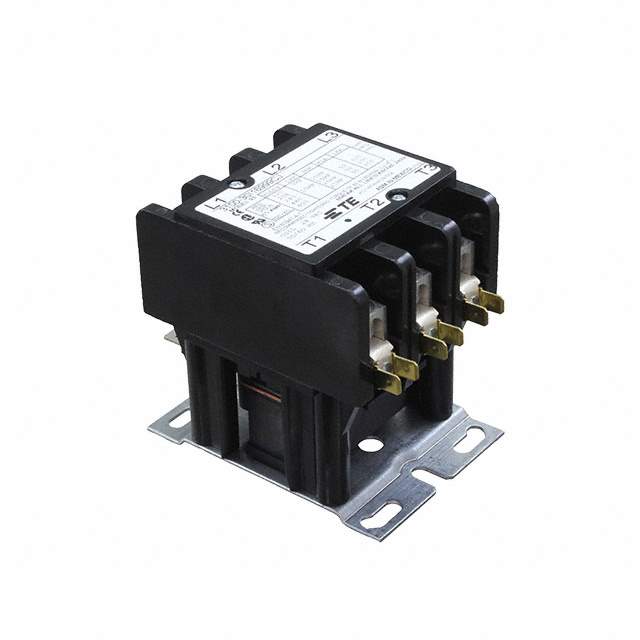

3100Y30K16999CJ Real Image
Same model may have multiple batches, images only for reference.

3100Y30K16999CJ

Part No 3100Y30K16999CJ
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR 3PST 50A 240V  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Potter & Brumfield Relays
Series 3100, Products Unlimited
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 240VAC
Contact Form 3PST-NO (DM) (3 Form X)
Contact Rating (Current) 50 A
Switching Voltage 600VAC - Max
Features Insulation - Class B
Termination Style Screw Terminal, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 65°C
Must Operate Voltage 177 VAC
Must Release Voltage 40 VAC
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 14VA
Coil Resistance 180Ohms
Base Product Number 3100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0065
Other Names PB3283,3100Y30K16999CJ-ND,1611020-2
Standard Package 1
Win Source Part Number 1066534-3100Y30K16999CJ
Ultra Librarian 3D Model Ultra Librarian 3100Y30K16999CJ CAD Model

Description

The Products Unlimited 3100 series relay contactor is an electromechanical component with a screw terminal and quick connect of 0.250 inches.

  • Contact Form: 3PST-NO (DM) (3 Form X)
  • Contact Material: silver cadmium oxide (AgCdO)
  • Insulation: class B
  • Maximum Switching Voltage: 600VAC
  • Current Rating: 50A
  • Coil Resistance: 180 Ohms
  • Coil Voltage: 240VAC
  • Coil Power: 14VA
  • Mounting: chassis mountable
  • Operating Temperature Range: -40°C to 65°C
  • Packaging: bulk
  • Cross-reference: with other part numbers like 3100-30K16999CJ, 3100-30K17999CJ, PBC-050A3M, 7-1393132-2, PBC-040A3M, and PBC-065A3M1611020-2
  • ECCN: EAR99 compliant
  • REACH: affected
