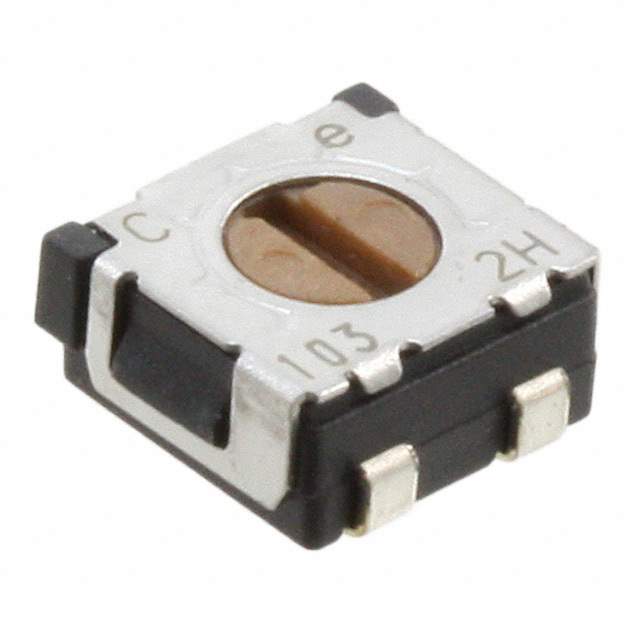

3204X501P Real Image
Same model may have multiple batches, images only for reference.

3204X501P

Part No 3204X501P
Manufacturer TE Connectivity
Catalog Potentiometers, Variable Resistors
Description TRIMMER 500 OHM 0.1W J LEAD TOP  /  500 Ohms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr TE Connectivity Passive Product
Series 3204, Citec
Package Tape & Reel
Product Status Last Time Buy
Resistance 500 Ohms
Power (Watts) 0.1W, 1/10W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.40.8050
Other Names 1-1623909-0,A106130TR,1-1623909-0-ND,-1714-3204X501PCT,A106130DKR,116239090,A106130CT
Standard Package 500
Win Source Part Number 1105080-3204X501P
Ultra Librarian 3D Model Ultra Librarian 3204X501P CAD Model

Description

The 3204X501P is a trimmer potentiometer from TE Connectivity Passive Product.

  • Type: Trimmer Potentiometer
  • Shape: Rectangular
  • Adjustment: Top
  • Face Dimension: 0.197" x 0.177" (5.00mm x 4.50mm)
  • Resistance: 500 Ohms
  • Tolerance: ±25%
  • Temperature Coefficient: ±250ppm/°C
  • Power Rating: 0.1W (1/10W)
  • Turns: 1
  • Mounting: SMD (SMT)
  • Package: Tape and Reel
  • Standard Package: 500
