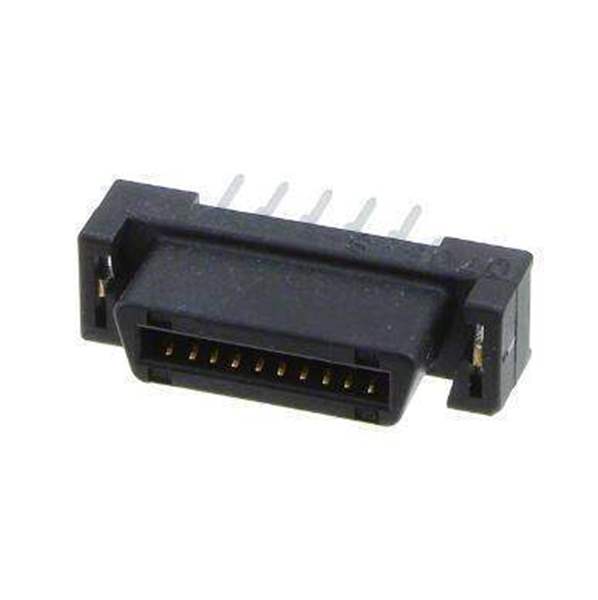

5175475-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5175475-1

Part No 5175475-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN BTB HD RCPT 20P VERT SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tray
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 20
Mounting Type Through Hole
Termination Solder
Type Board to Board, High Density
Features Board Lock
Win Source Part Number WS1209007-5175475-1
Ultra Librarian 3D Model Ultra Librarian 5175475-1 CAD Model

Description

20 Position Receptacle Connector Board to Board, High Density Through Hole Solder
