Part No 5747299-8
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors

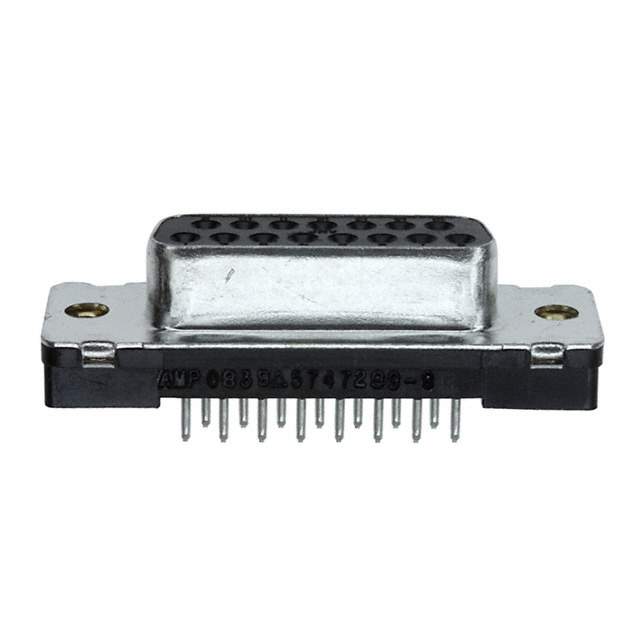

Description HD-20 Straight Posted Connectors | CONN D-SUB RCPT 15POS VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Style Through Hole
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 13
MSL Level 1 (Unlimited)
Win Source Part Number 736514-5747299-8
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5747299-8 CAD Model

Description

The 5747299-8 is a 15-position through-hole D-sub connector manufactured by TE Connectivity AMP Connectors.

  • Voltage rating: 125V
  • Current: up to 6A
  • Contact finish: gold
  • Flammability rating: UL94 V-0
